A/T Control System: Shift Mechanism
›
Clutch And Band Chart
Clutch And Band Chart

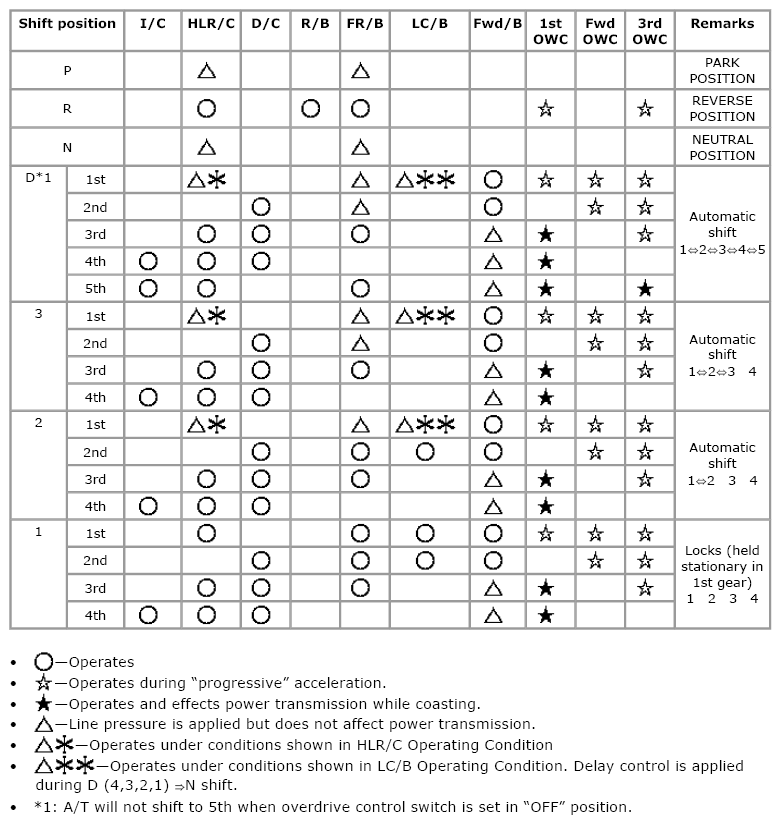

Fig 1: Clutch And Band Chart
Courtesy of SUZUKI OF AMERICA CORP.

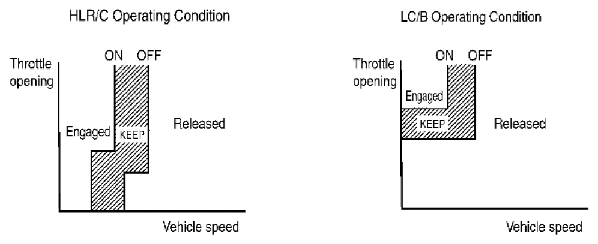

Fig 2: Throttle Valve Opening Angle Graph
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
