A/T Shift Lock System: Component Parts Location

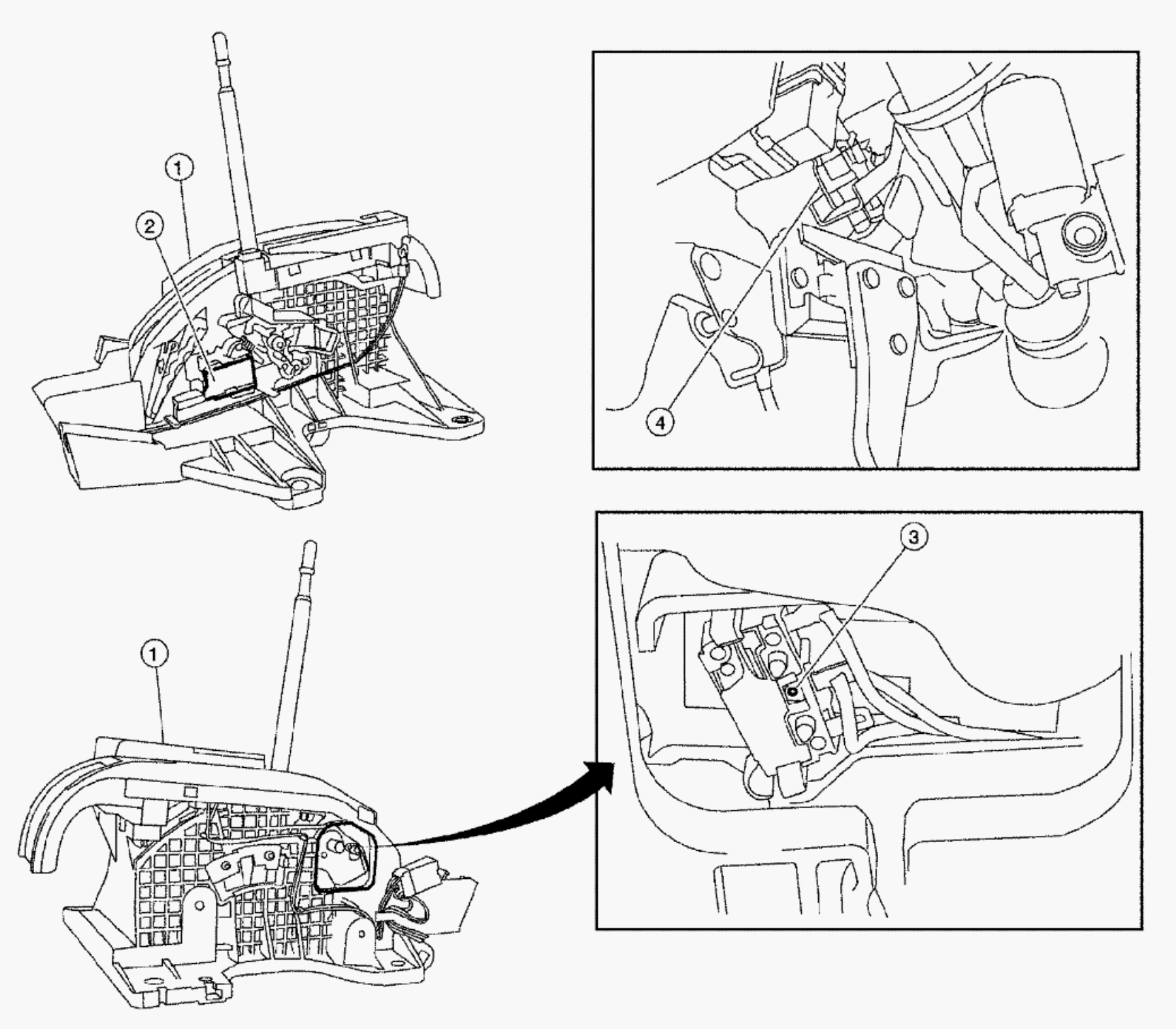

Fig 1: Identifying A/T Shift Lock System Components (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying A/T Shift Lock System Components (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
