Automatic Transmission System
›
General Description
›
A/T Control System: TCM Function
›
Control System Diagram
Control System Diagram

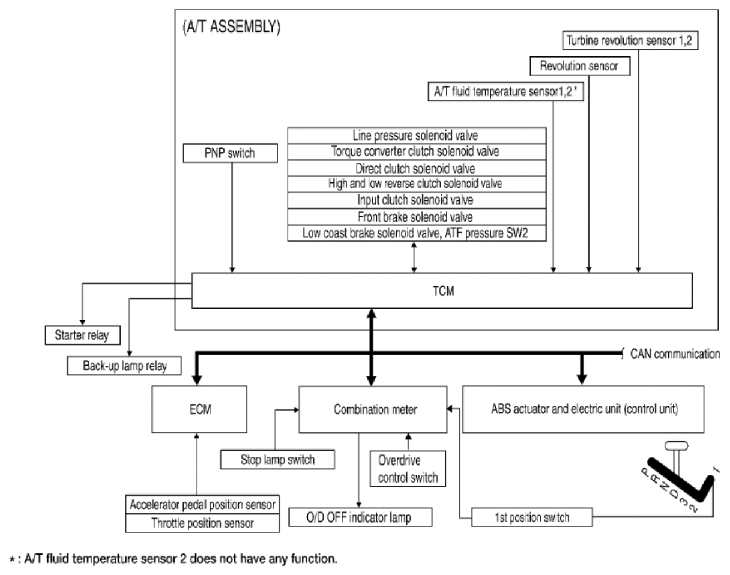

Fig 1: A/T Control System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
