Automatic Transmission System
›
General Description
›
Cross-Sectional View
Cross-Sectional View

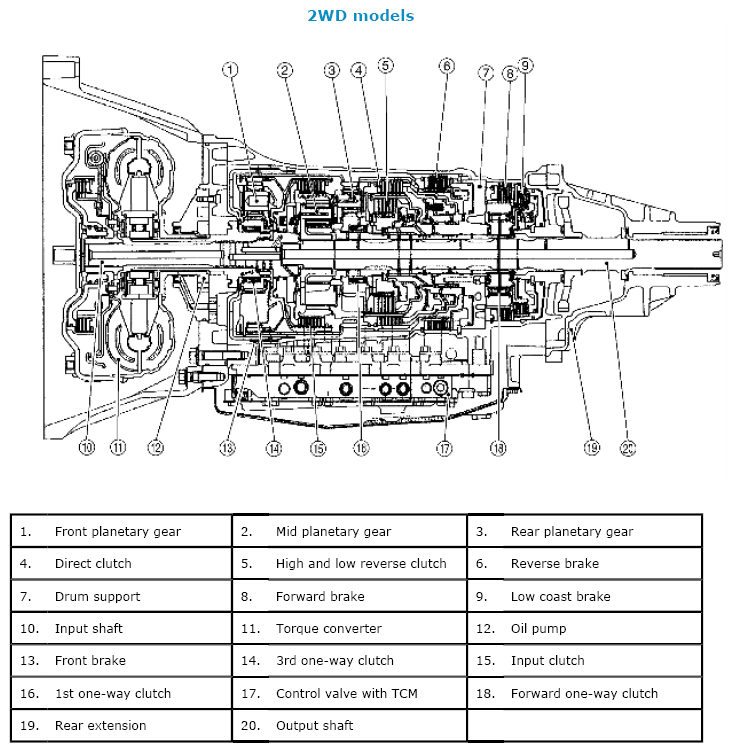

Fig 1: Cross-Sectional View Of Automatic Transmission (2WD Models)
Courtesy of SUZUKI OF AMERICA CORP.

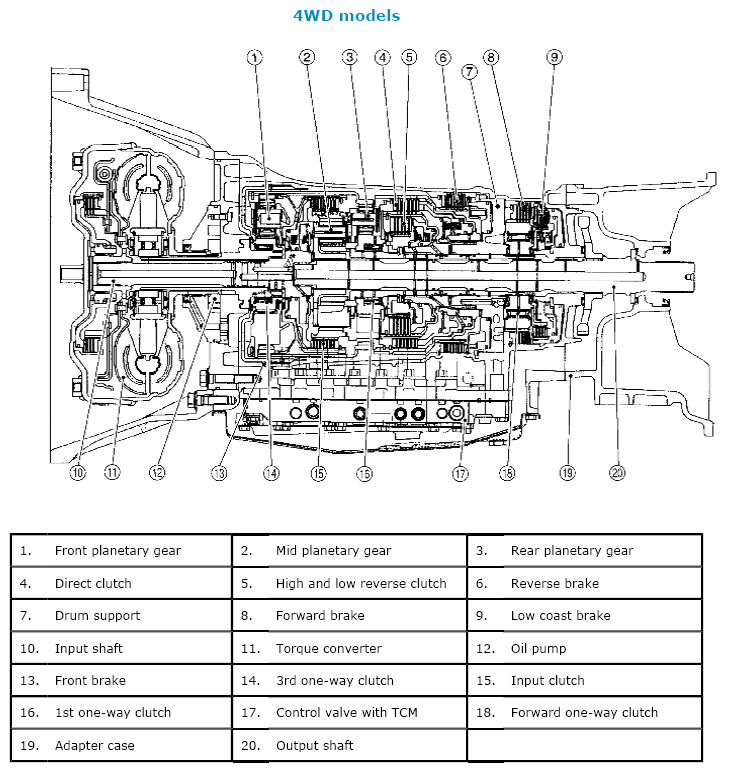

Fig 2: Cross-Sectional View Of Automatic Transmission (4WD Models)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
