Key Interlock Cable: Removal and Installation: Installation

Set key interlock cable to key cylinder and install holder.

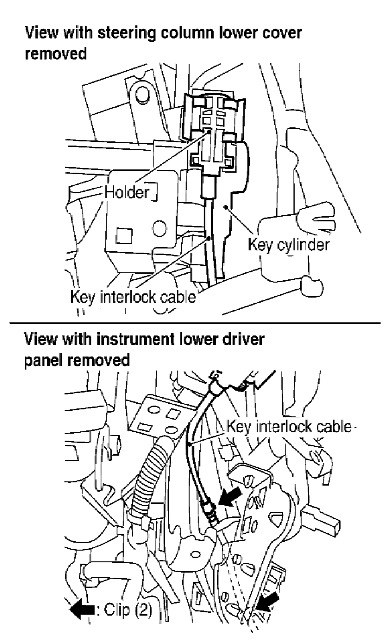

Fig 1: Identifying Key Interlock Cable And Key Cylinder With Holder
Courtesy of SUZUKI OF AMERICA CORP.
Turn ignition key to "LOCK" position.
Set selector lever to "P" position.
Insert interlock rod into adjuster holder.

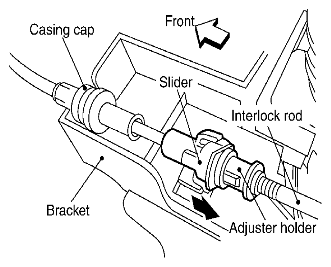

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Courtesy of SUZUKI OF AMERICA CORP.
Install casing cap to bracket.
Move slider in order to secure adjuster holder to interlock rod.
Install lower instrument panel LH. Refer to INSTRUMENT PANEL ASSEMBLY: EXPLODED VIEW
Install lower glove box. Refer to INSTRUMENT PANEL ASSEMBLY: EXPLODED VIEW
Install A/T finisher. Refer to INSTRUMENT PANEL ASSEMBLY: EXPLODED VIEW
