Transmission Assembly Exploded View

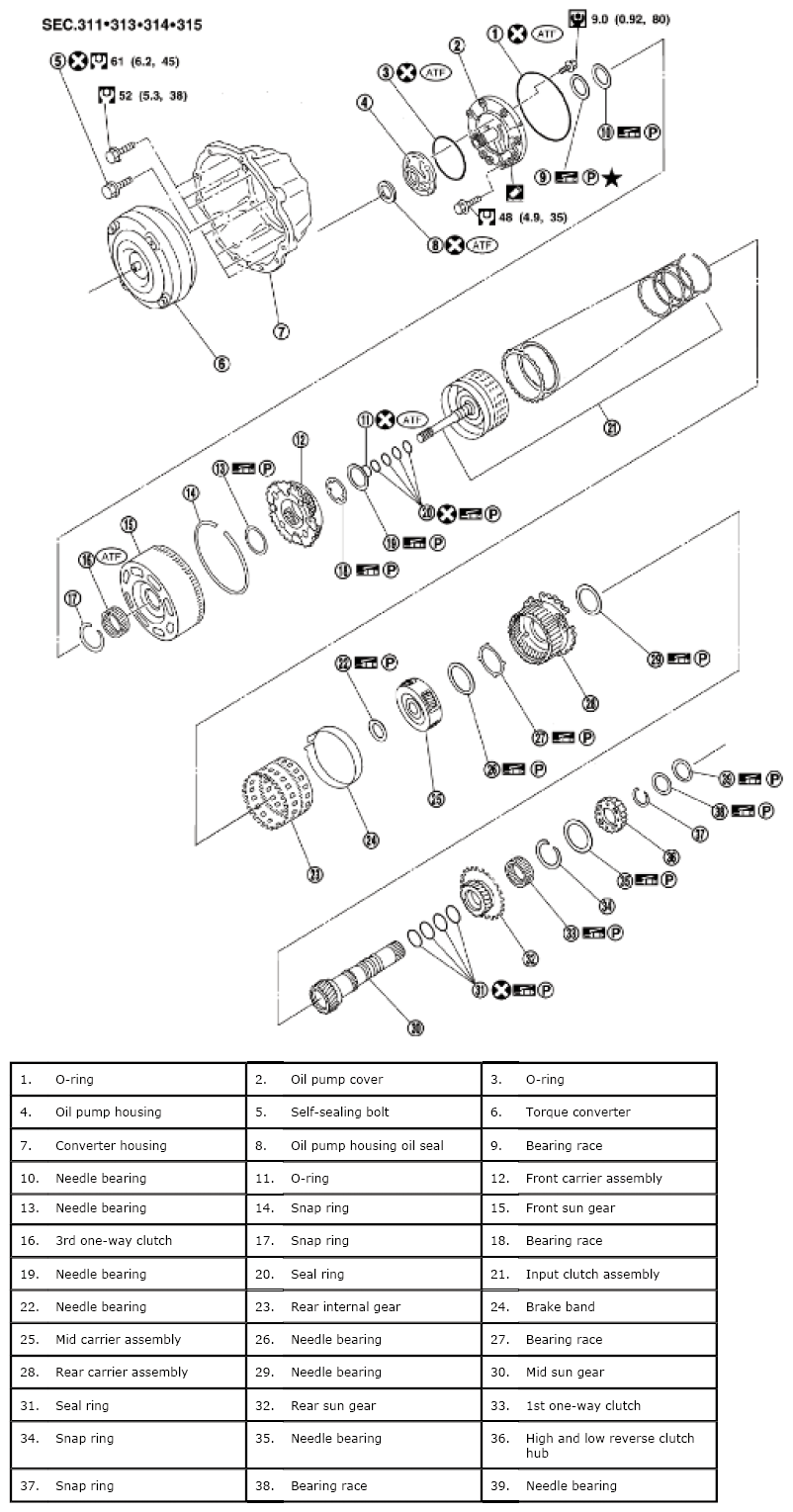

Fig 1: Exploded View Of Transmission Assembly

Courtesy of SUZUKI OF AMERICA CORP.

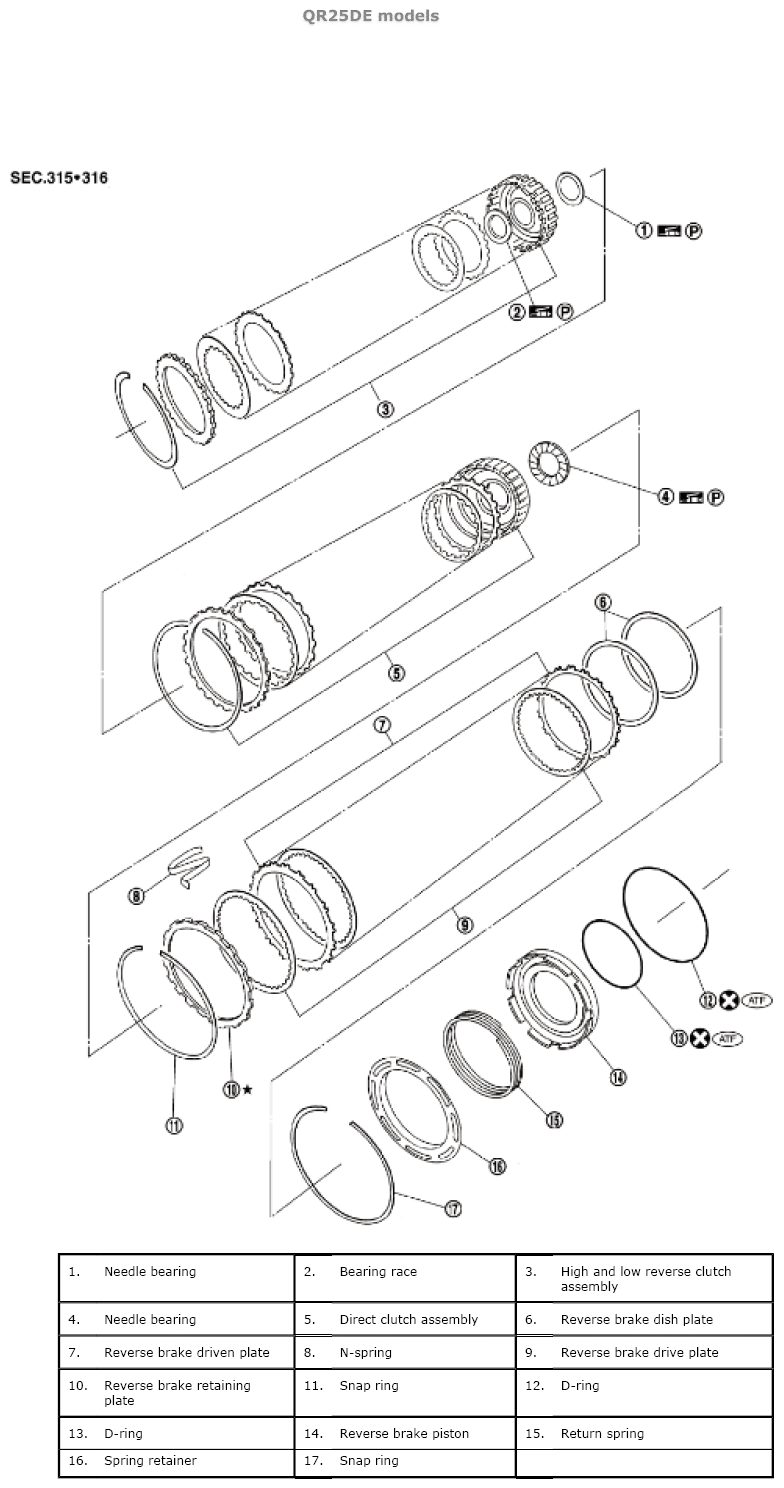

Fig 2: Exploded View Of Transmission Assembly (QR25DE Models)

Courtesy of SUZUKI OF AMERICA CORP.

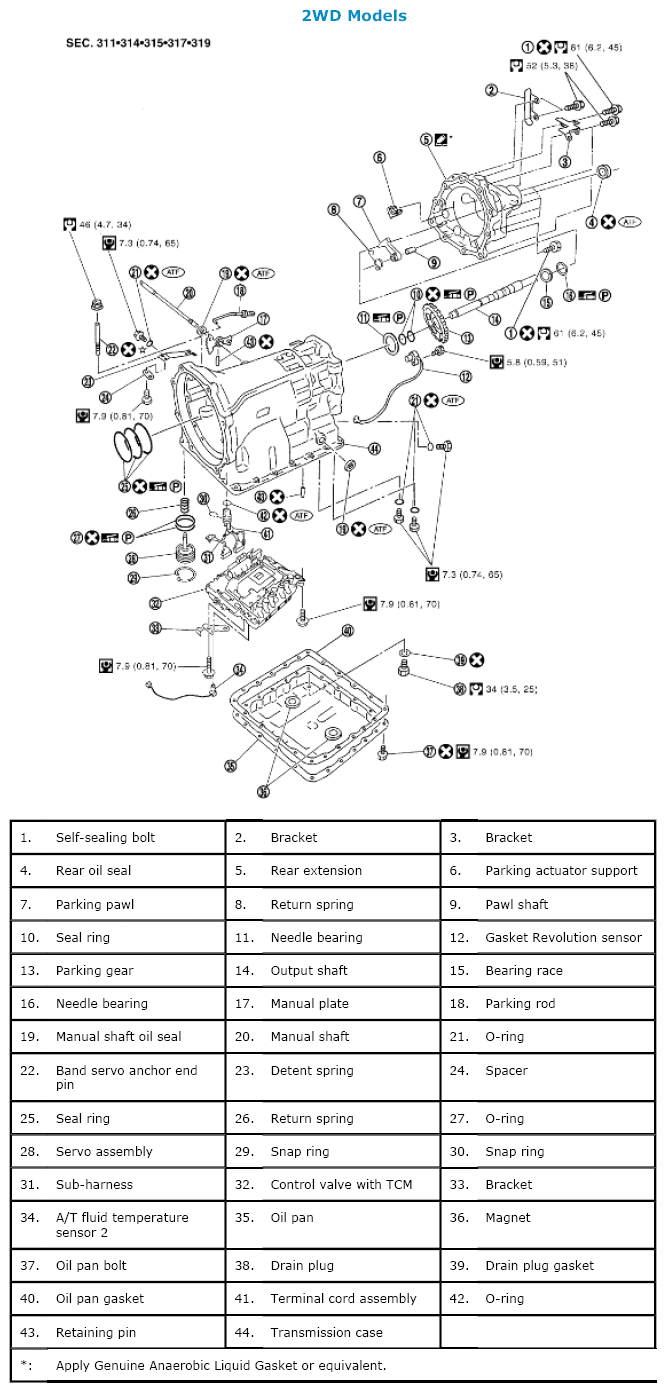

Fig 3: Exploded View Of Transmission Assembly (2WD Models)

Courtesy of SUZUKI OF AMERICA CORP.

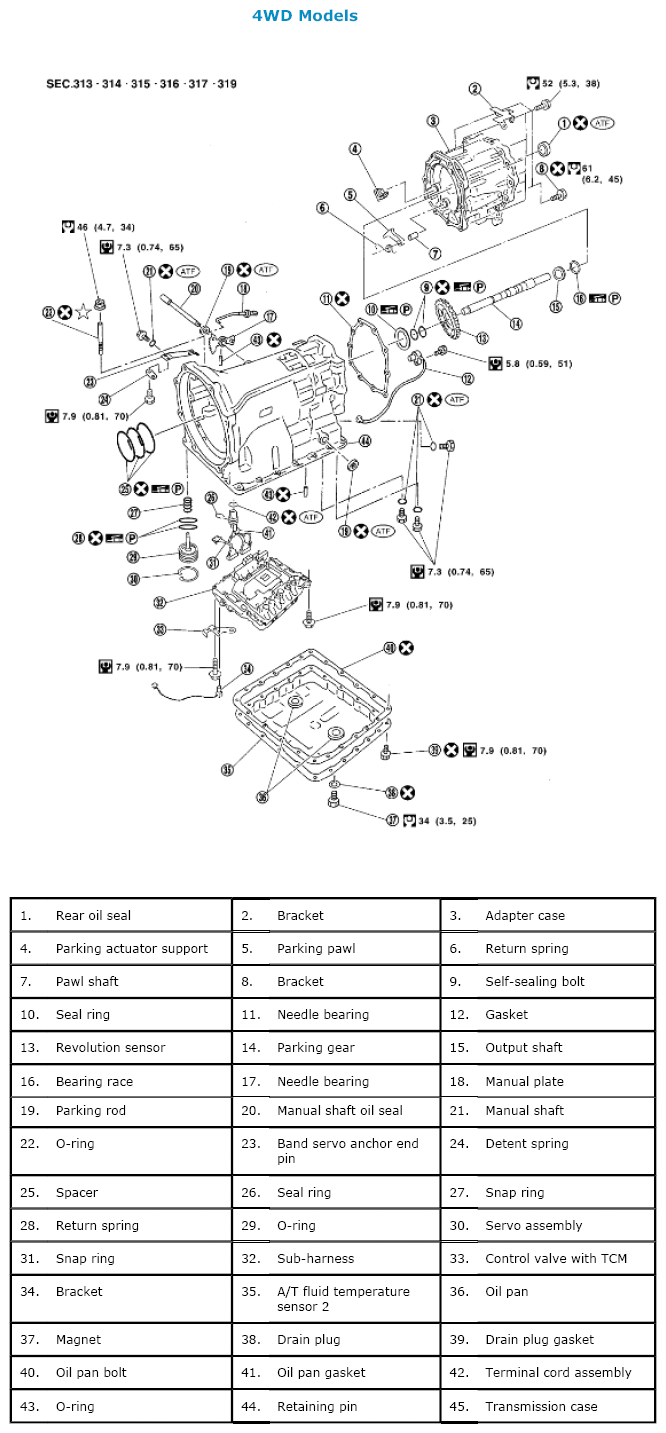

Fig 4: Exploded View Of Transmission Assembly (4WD Models)

Courtesy of SUZUKI OF AMERICA CORP.
