Communication System
›
General Description
›
CAN Communication System Description
›
System Block Diagram
System Block Diagram

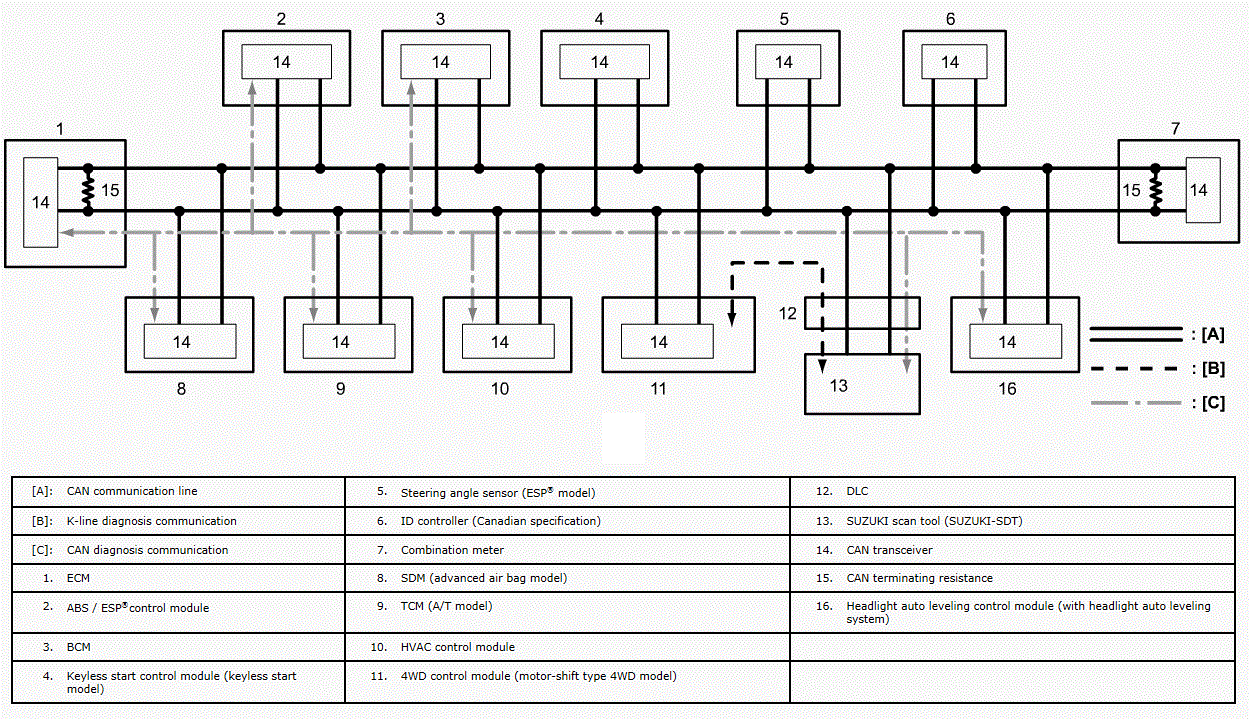

Fig 1: CAN Communication System Block Diagram
