Keyless Start System Component Location
Keyless Start System Component Location

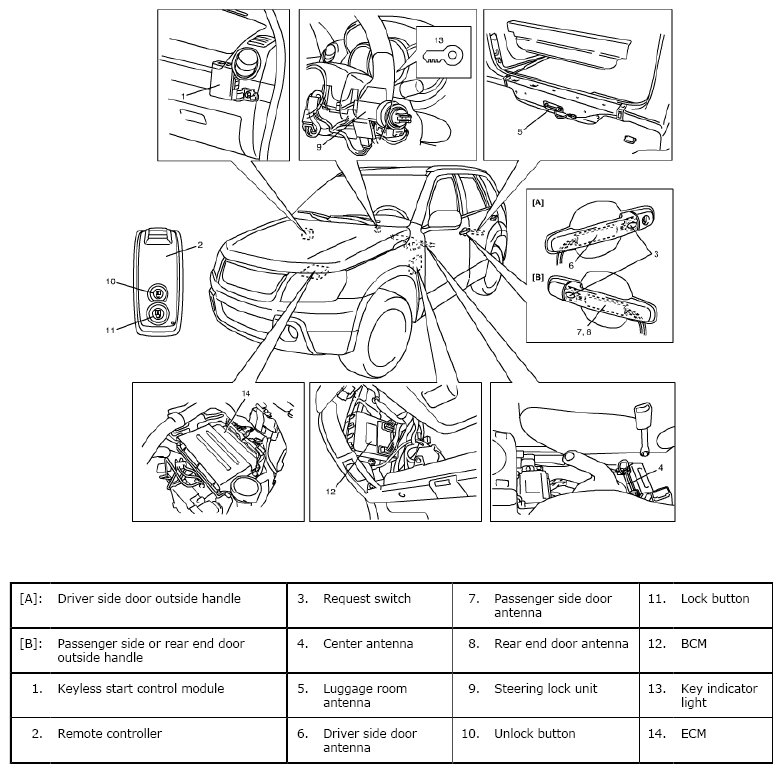

Fig 1: Keyless Start System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
