Key Indicator Light Check

Push the ignition knob switch (2) of the steering lock unit (1) and check that the key indicator light (3) in the combination meter lights up in red or blue. If it does not light, go to KEY INDICATOR LIGHT CIRCUIT CHECK (KEY INDICATOR LIGHT DOES NOT LIGHT WHEN IGNITION KNOB SWITCH IS PUSHED) .

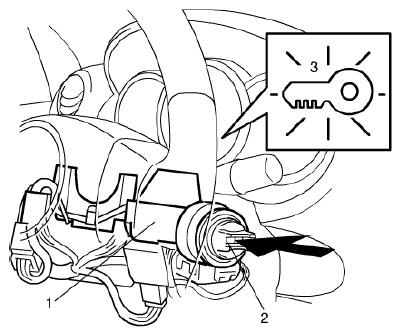

Fig 1: Identifying Ignition Knob Switch, Steering Lock Unit And Key Indicator Light
