Keyless Start Control Module Power and Ground Circuit Check
›
Circuit Diagram
Circuit Diagram

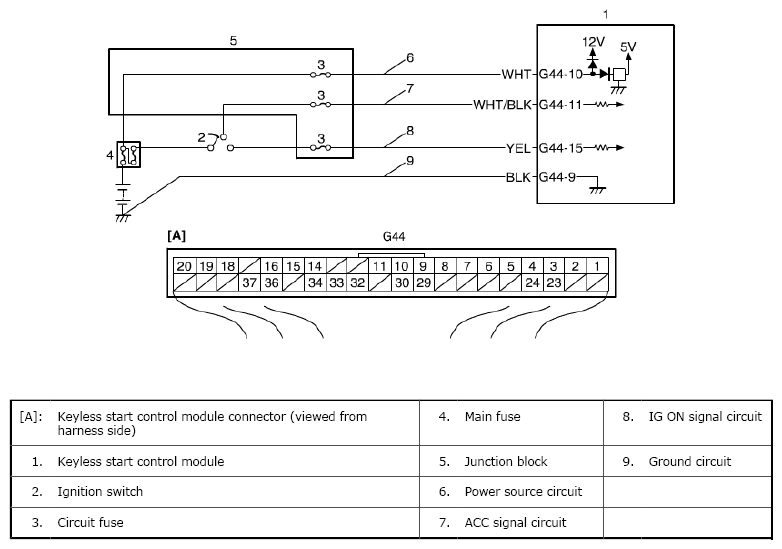

Fig 1: Keyless Start Control Module Power And Ground Circuit - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
