Front Seat Components
Front Seat Components

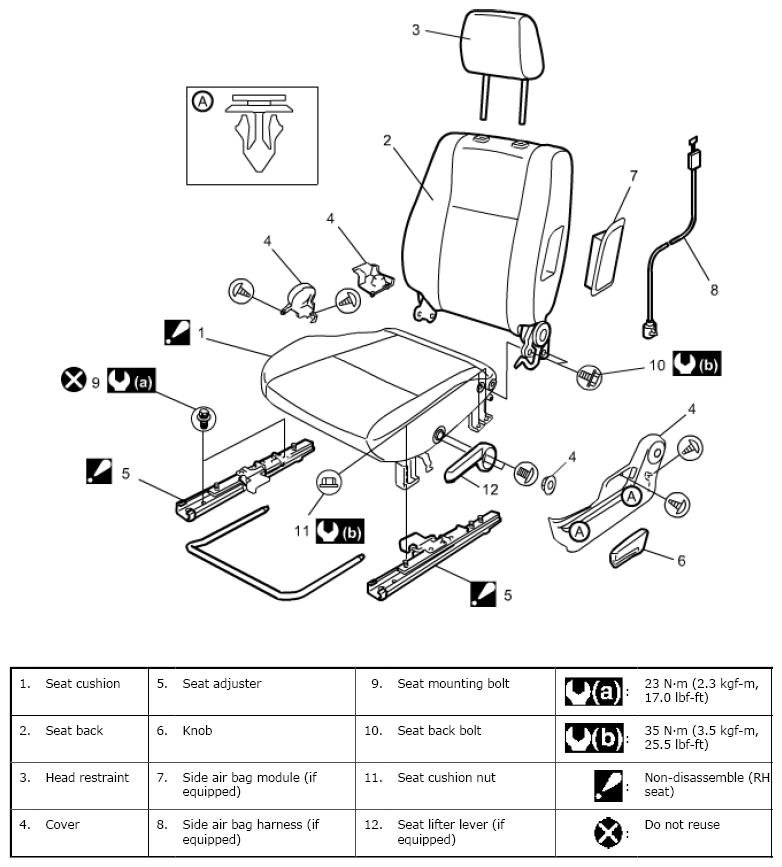

Fig 1: Front Seat Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
