ABS (ESP®) Hydraulic Unit/Control Module Assembly Components
ABS (ESP®) Hydraulic Unit/Control Module Assembly Components

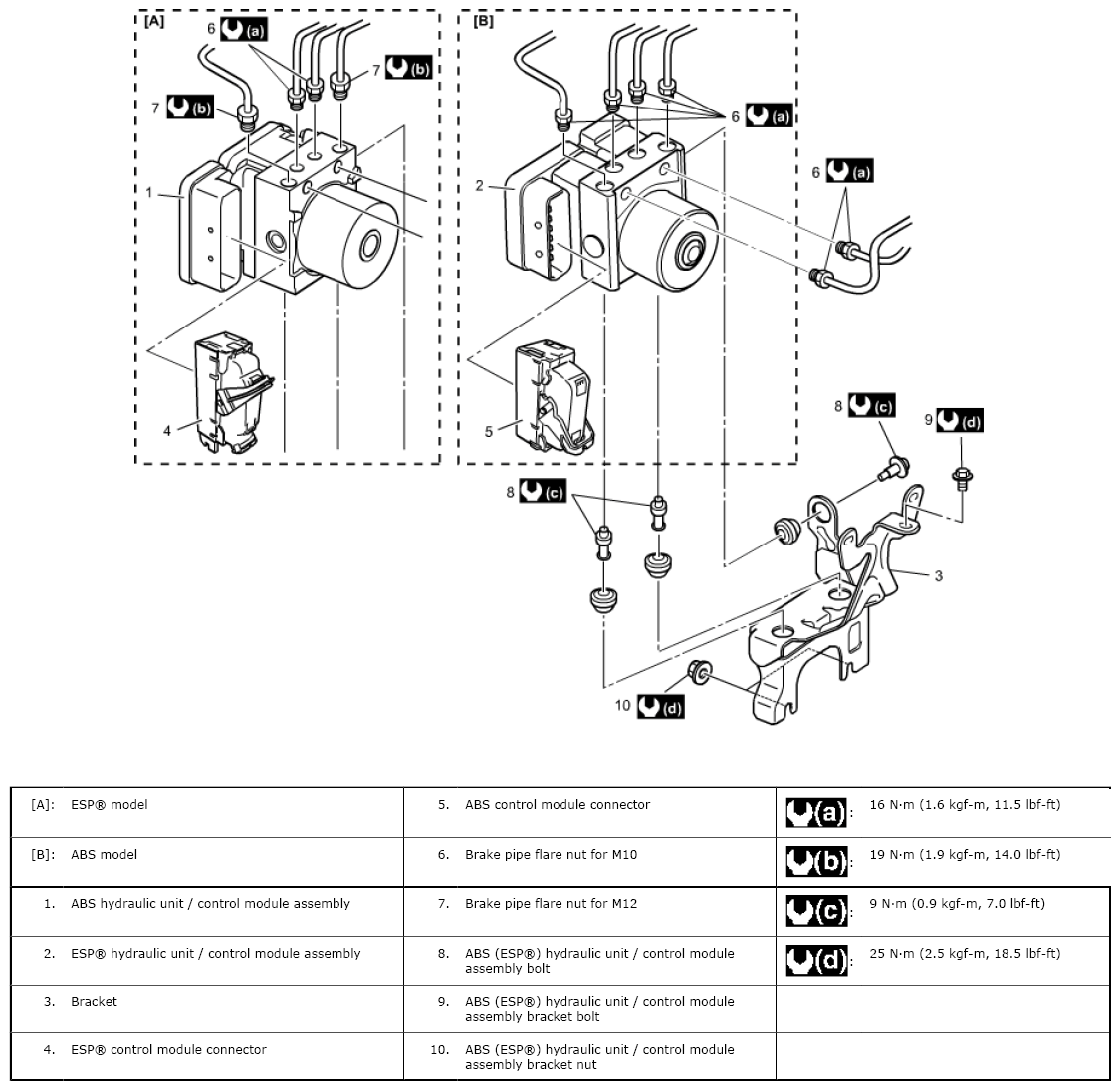

Fig 1: Identifying ABS (ESP®) Hydraulic Unit/Control Module Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
