Front Part

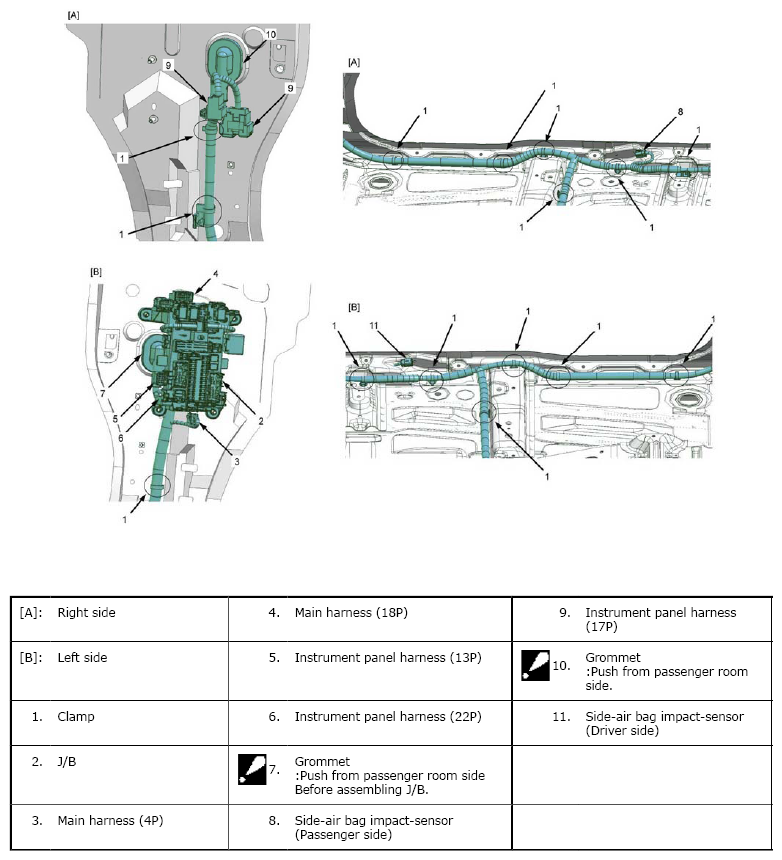

Fig 1: Identifying Wiring Harness Clips - Around Main Floor Front Part (1 Of 2)
G08899459Courtesy of SUZUKI OF AMERICA CORP.

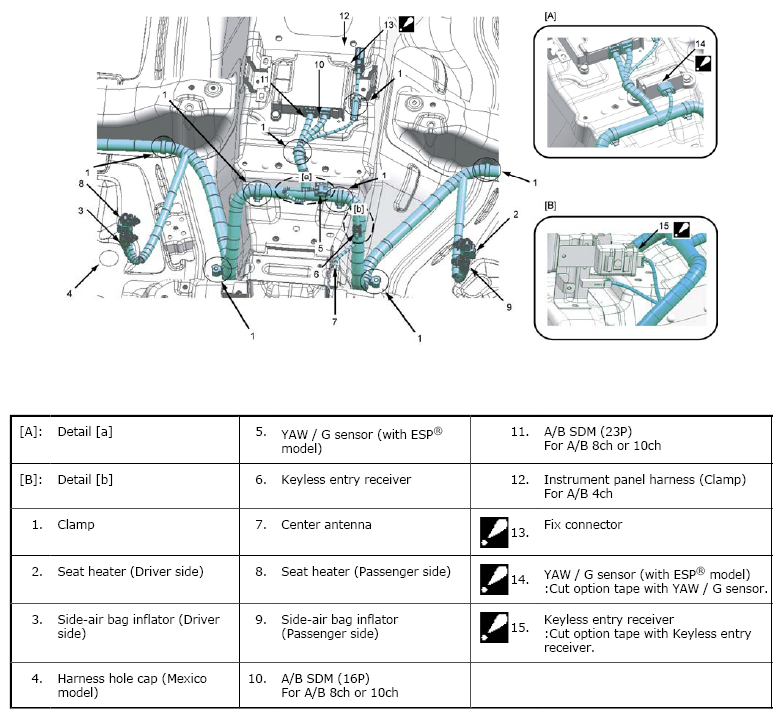

Fig 2: Identifying Wiring Harness Clips - Around Main Floor Front Part (2 Of 2)
G08899460Courtesy of SUZUKI OF AMERICA CORP.
