Fuel Injector Removal and Installation: Removal
- Relieve fuel pressure. Refer to FUEL PRESSURE RELIEF PROCEDURE .
- Disconnect negative (-) cable from battery.
- Disconnect fuel injector connectors.

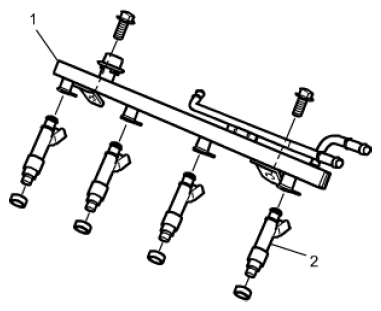

- Disconnect fuel feed hose from fuel delivery pipe (1).
- Remove fuel delivery pipe (1).
- Remove fuel injector(s) (2).
