Fuel Pump Assembly Removal and Installation: Installation
Reference: FUEL PUMP INSPECTION
WARNING:
Failure to take proper precautions when reinstalling the fuel tank connections can result in fuel leakage or damage.
Clean the outside surface of the pipe where each quick joint is to be installed, push the pipe into the joint until the joint lock clicks, and then confirm that the pipe is connected securely.
Clean the outside surface of the pipe where each quick joint is to be installed, push the pipe into the joint until the joint lock clicks, and then confirm that the pipe is connected securely.
Reverse removal procedure for installation noting the following.
- Check that mating surface of fuel pump is clean.

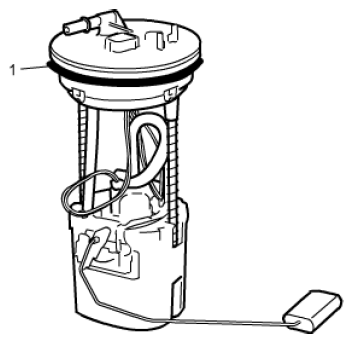

- Use new fuel pump gasket.
- Tighten fuel pump nuts to specified torque.
Tightening torque
Fuel pump nut: 10 N.m (1.0 kgf-m, 7.5 lbf-ft)

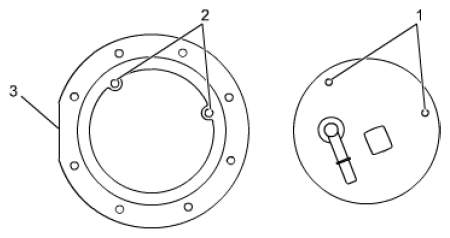

- Align protrusions (1) on fuel pump with aligning hole (2) on fuel pump plate.
- Align flat portion (3) on fuel pump plate with specified position on fuel tank.
