Grand Vitara Base
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Schematic and Routing Diagram
›
Fuel Delivery System Diagram
Fuel Delivery System Diagram

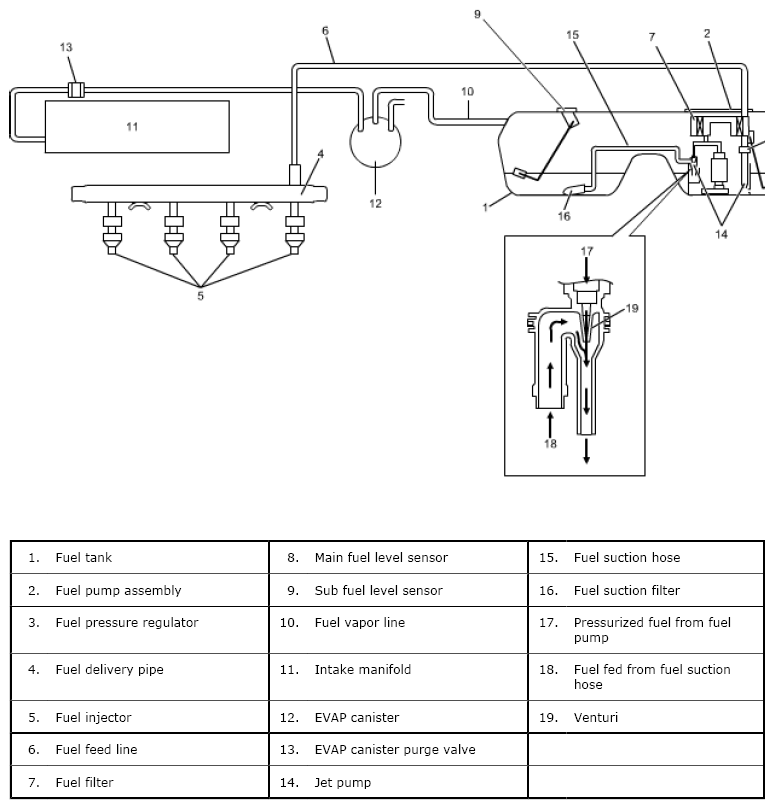

Fig 1: Fuel Delivery System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
