Ignition Coil Assembly Removal and Installation: Removal

  1. Disconnect negative (-) cable from battery.
  2. Remove engine cover.
  3. Disconnect ignition coil connectors (1).
  4. Remove ignition coil assembly (2).

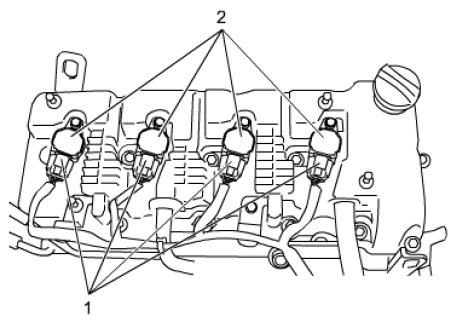

    Fig 1: Identifying Ignition Coil Connectors And Assembly
    G08895487Courtesy of SUZUKI OF AMERICA CORP.
