Power Assisted Steering System
›
Repair Instructions
›
P/S Pump Components
P/S Pump Components

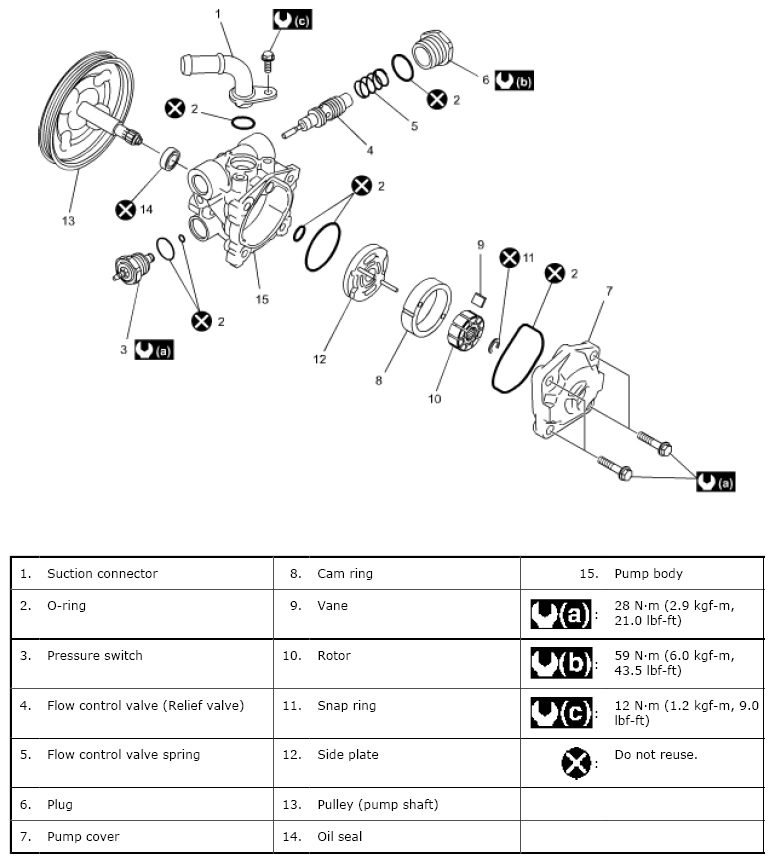

Fig 1: P/S Pump Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
