Gear Shift Lever Front Case Assembly Components
Gear Shift Lever Front Case Assembly Components

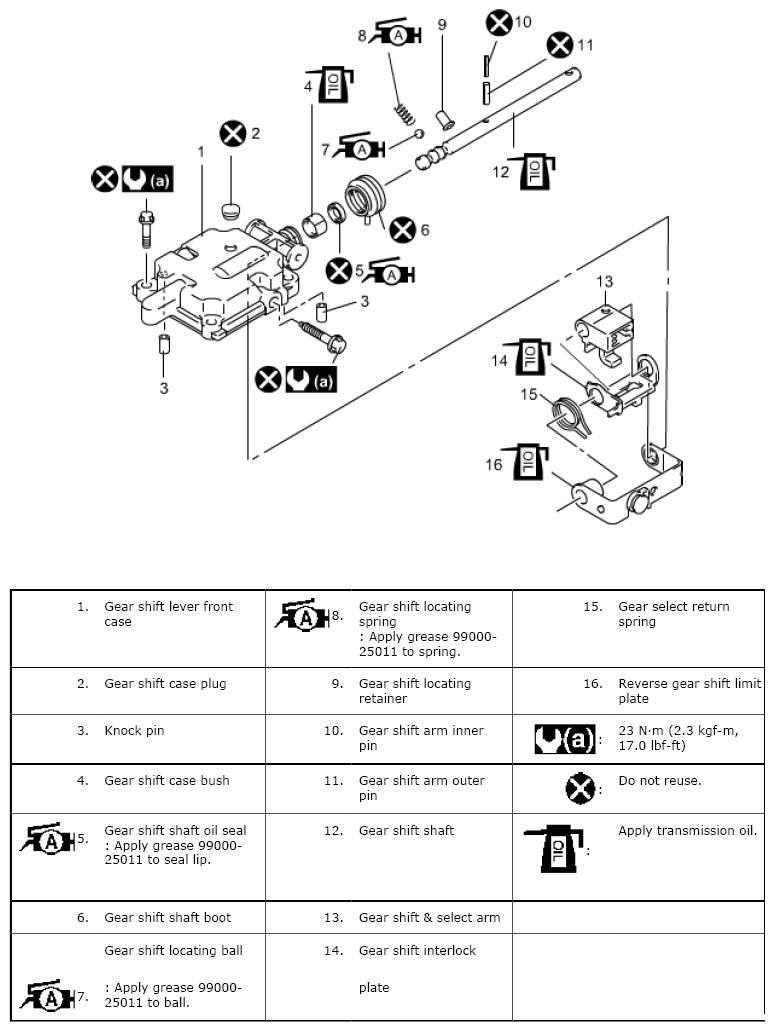

Fig 1: Exploded View Of Gear Shift Lever Front Case Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
