Manual Transmission Assembly Components
Manual Transmission Assembly Components

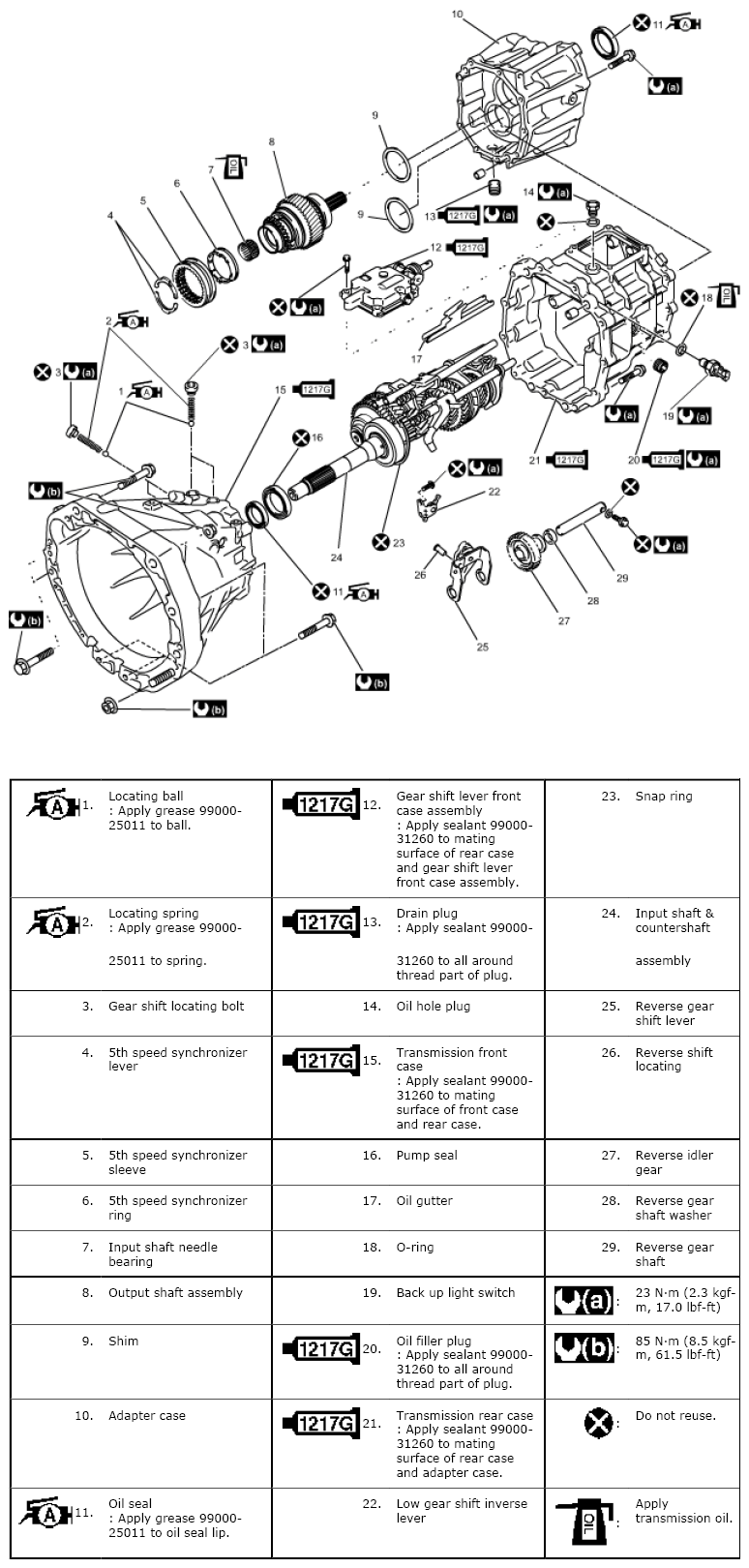

Fig 1: Exploded View Of Manual Transmission Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
