Electronic Stability Program Input/Output Block Diagram
Electronic Stability Program Input/Output Block Diagram

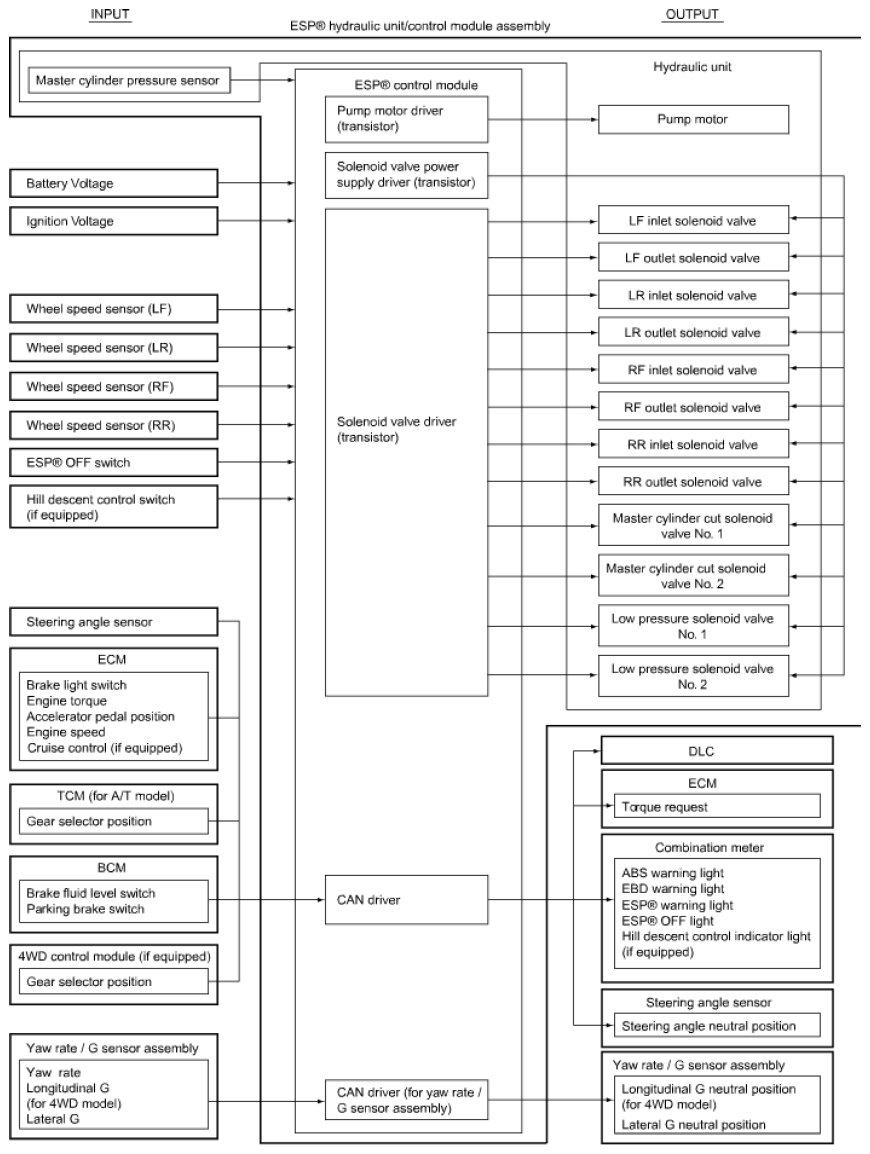

Fig 1: Electronic Stability Program Input/Output Block Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
