Manual Transaxle Assembly Components
Manual Transaxle Assembly Components

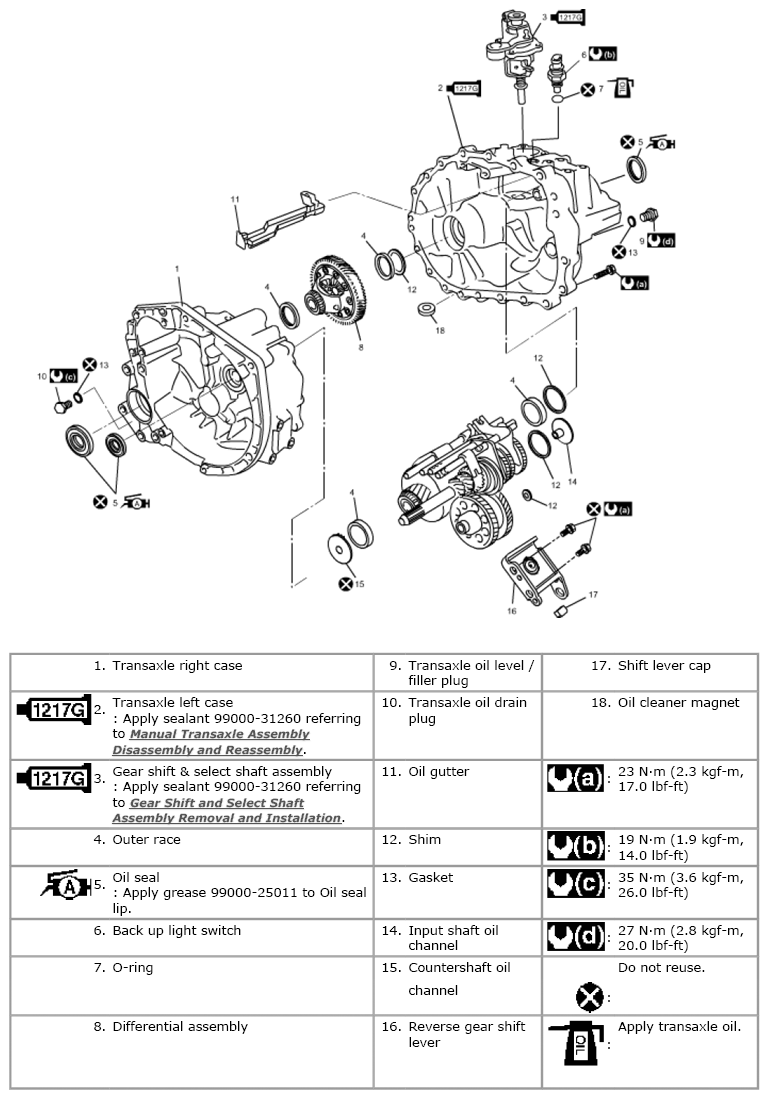

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
