Home › Suzuki › 2012 › Kizashi SE, FWD › Repair and Diagnosis › Transmission › Automatic Trans › Continuously Variable Transaxle (CVT) › Repair Instructions › Select Cable Components

Select Cable Components

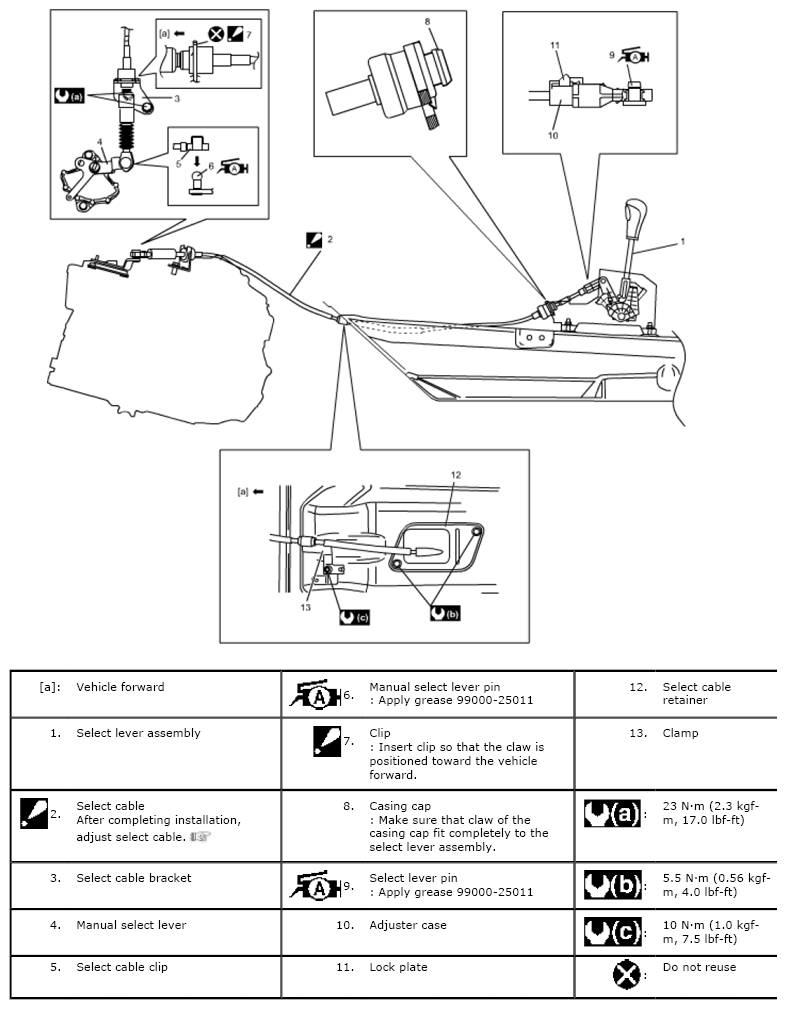

Fig 1: Select Lever Assembly With Torque Specifications
G06527869Courtesy of SUZUKI OF AMERICA CORP.
