Transmission Control Module (TCM) Removal and Installation: Removal

Disconnect negative (-) cable at battery.
Remove driver side instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
Disconnect connectors (2) from TCM (1).
Remove TCM by removing nuts (3).

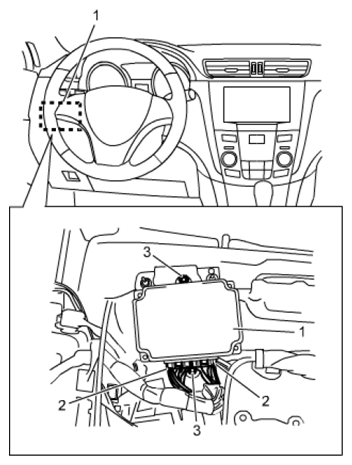

Fig 1: Identifying TCM And Connectors
Courtesy of SUZUKI OF AMERICA CORP.
