ESP® Input/Output Block Diagram
ESP® Input/Output Block Diagram

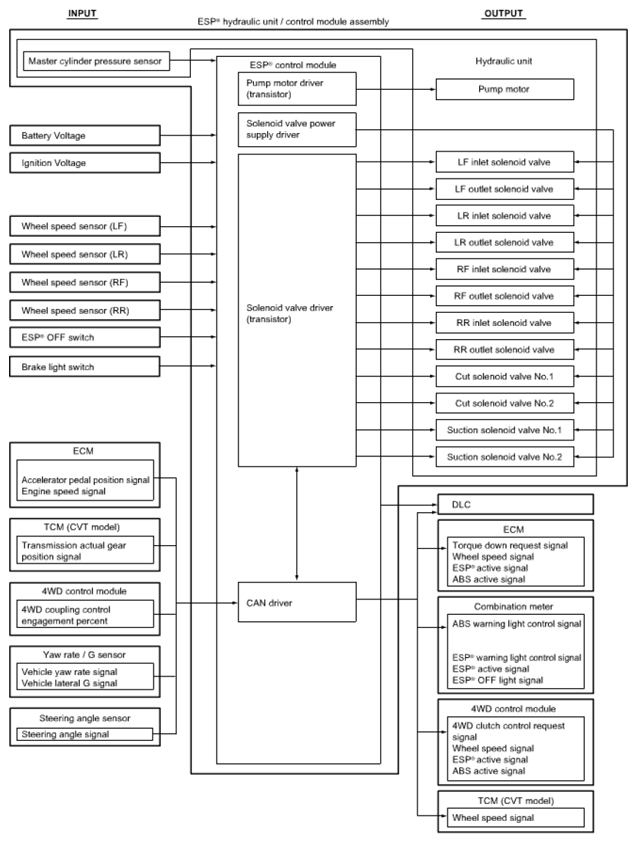

Fig 1: ESP® Input/Output Block Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
