4WD Control System Component Location
4WD Control System Component Location

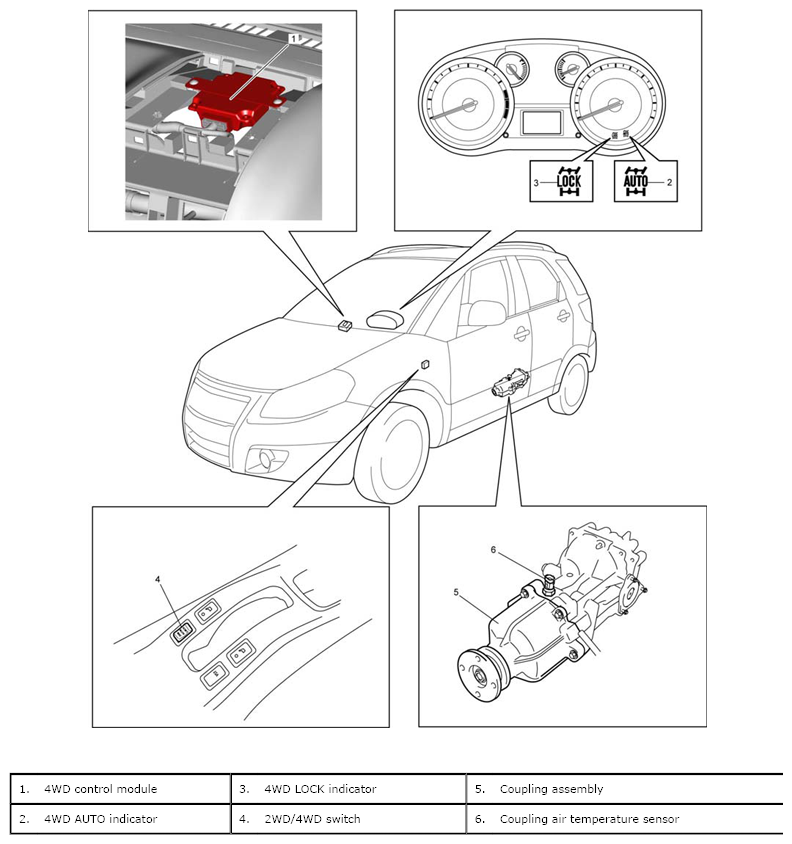

Fig 1: Identifying 4WD Control System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
