BCM and Related System Component Location
BCM and Related System Component Location
Reference:
BCM GENERAL DESCRIPTION

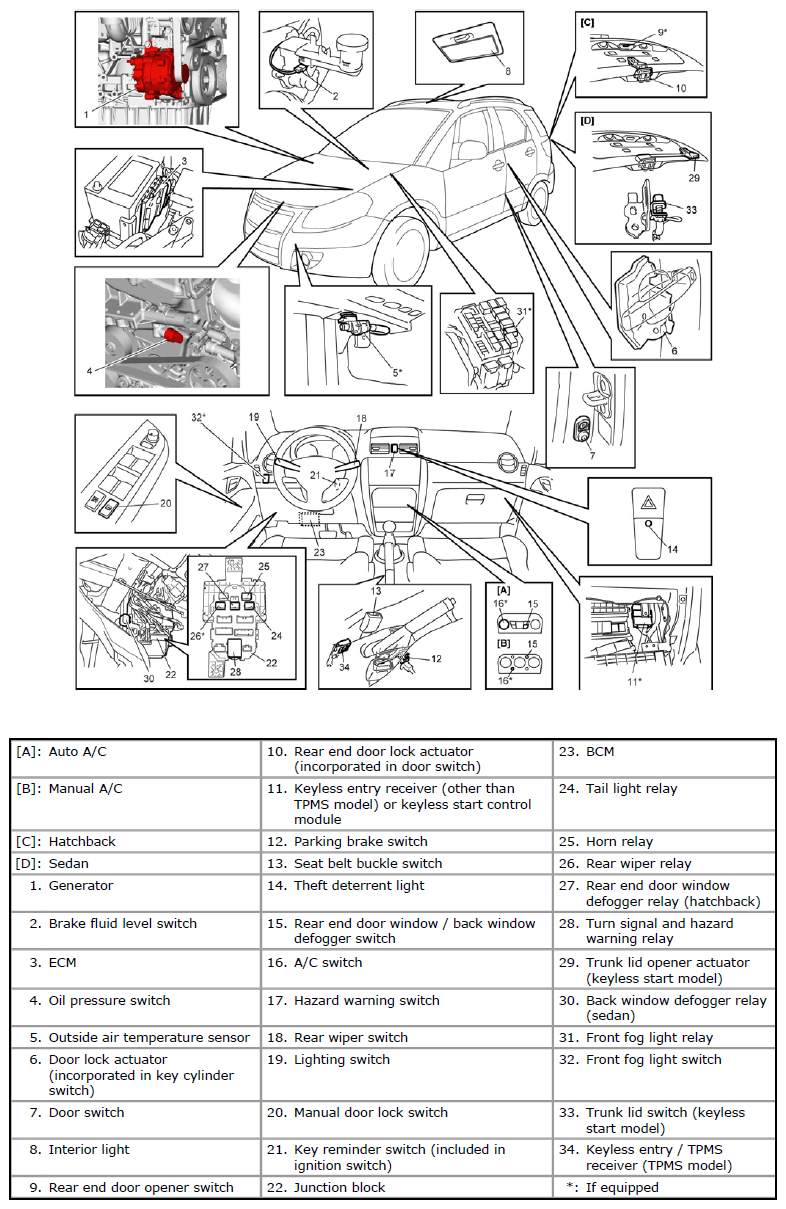

Fig 1: BCM And Related System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
