Reassembling Note for Wiring Harness
›
Around Battery
Around Battery

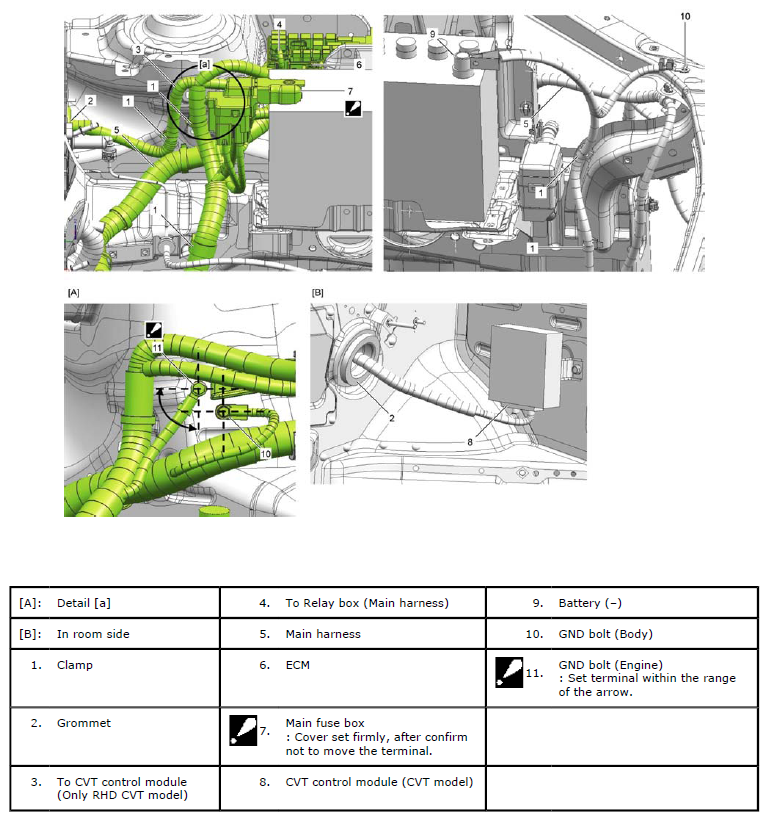

Fig 1: Identifying Around Battery Harness (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

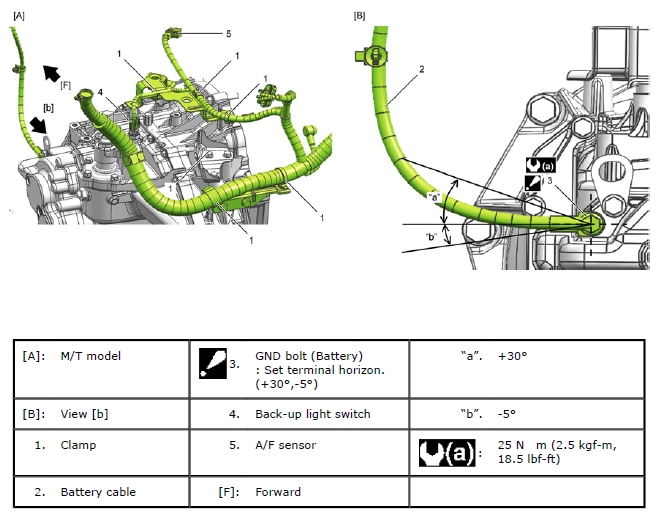

Fig 2: Identifying Around Battery Harness (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

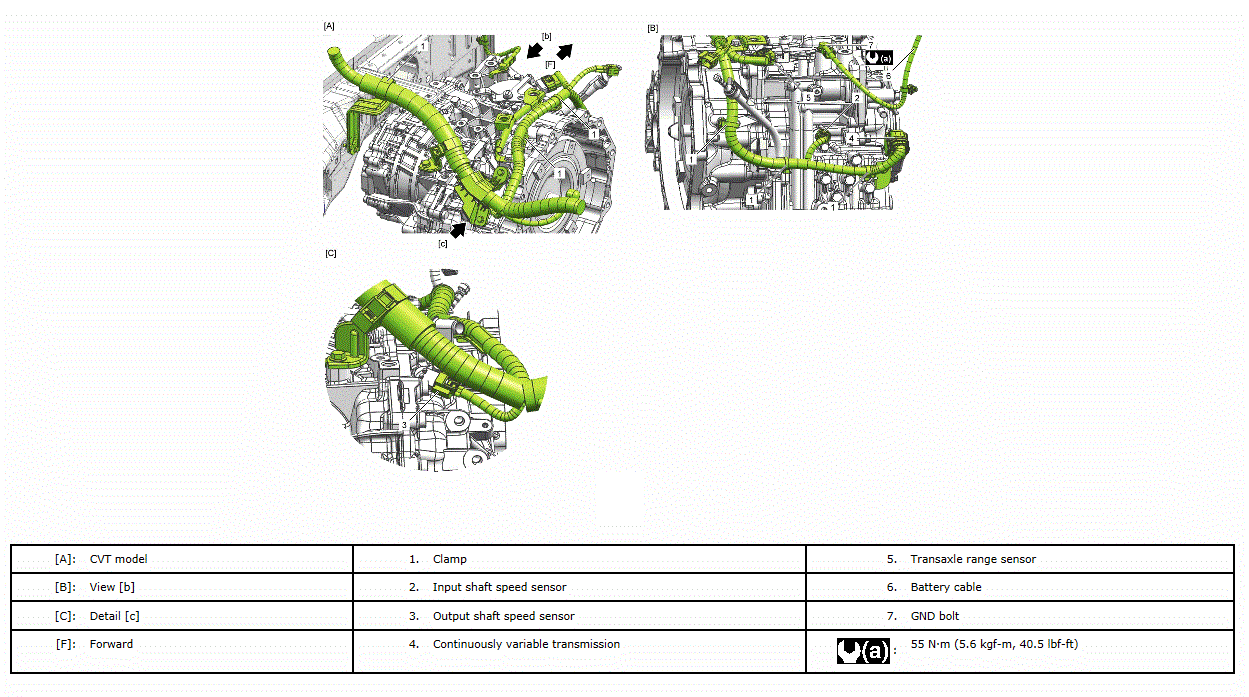

Fig 3: Identifying Around Battery Harness (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
