Front Part

Fig 1: Instrument Panel Harness/Floor Harness (Dash Side Panel)
G06871309Courtesy of SUZUKI OF AMERICA CORP.

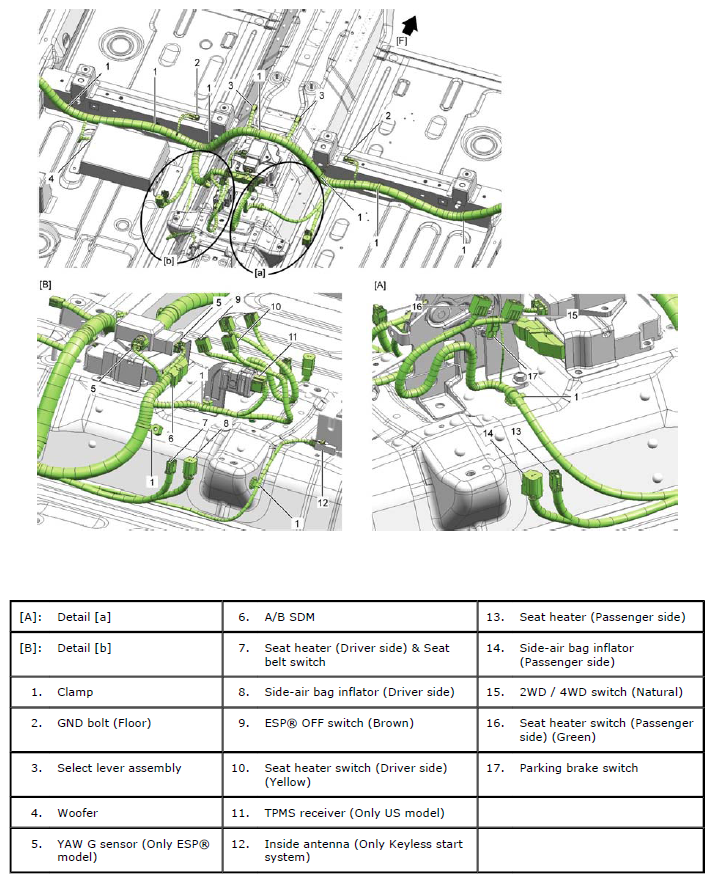

Fig 2: Floor Harness
G06871310Courtesy of SUZUKI OF AMERICA CORP.
