Wiring Systems
›
System Circuit Diagram
›
B-9 Keyless Start System Circuit Diagram
B-9 Keyless Start System Circuit Diagram

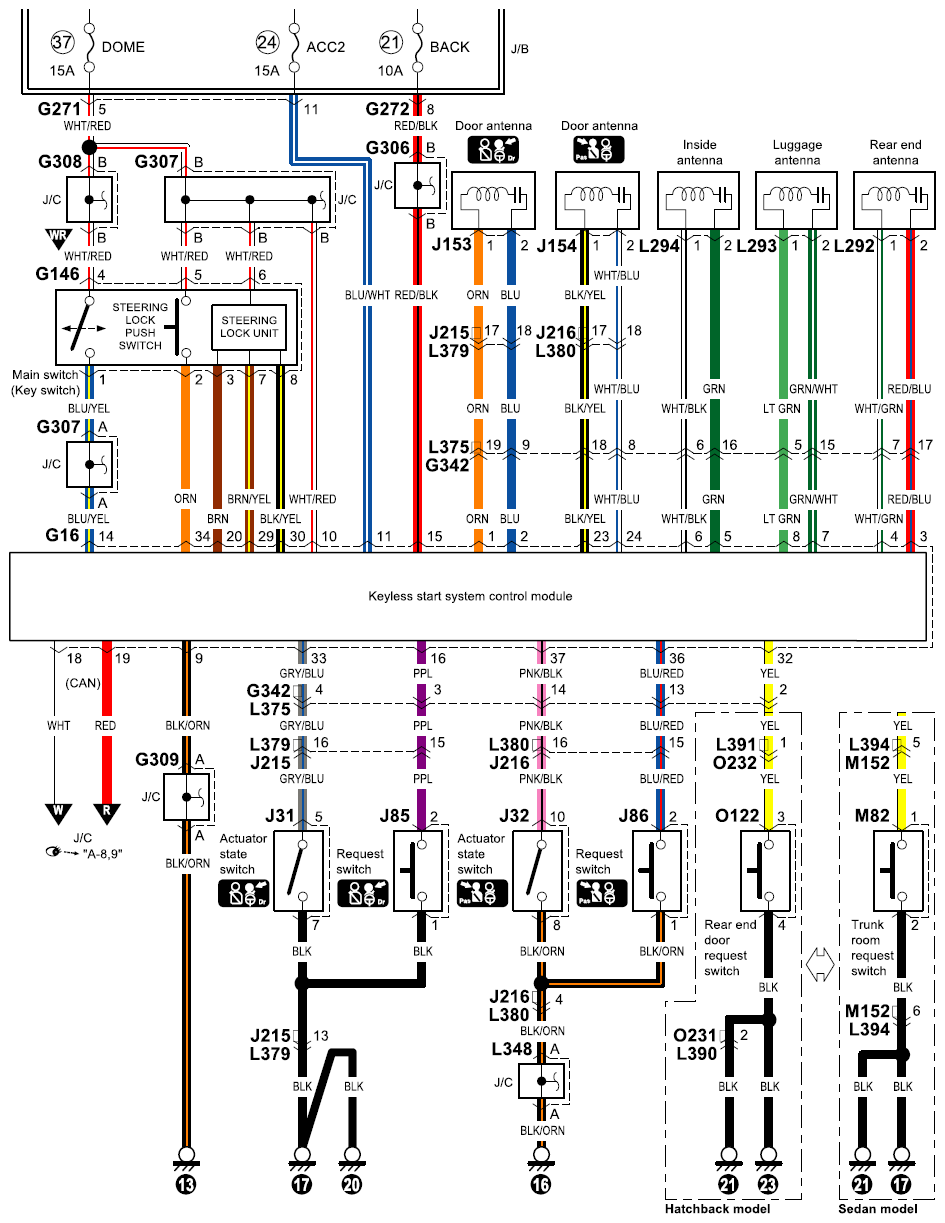

Fig 1: B-9 Keyless Start System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
