G-4 Navigation System circuit Diagram

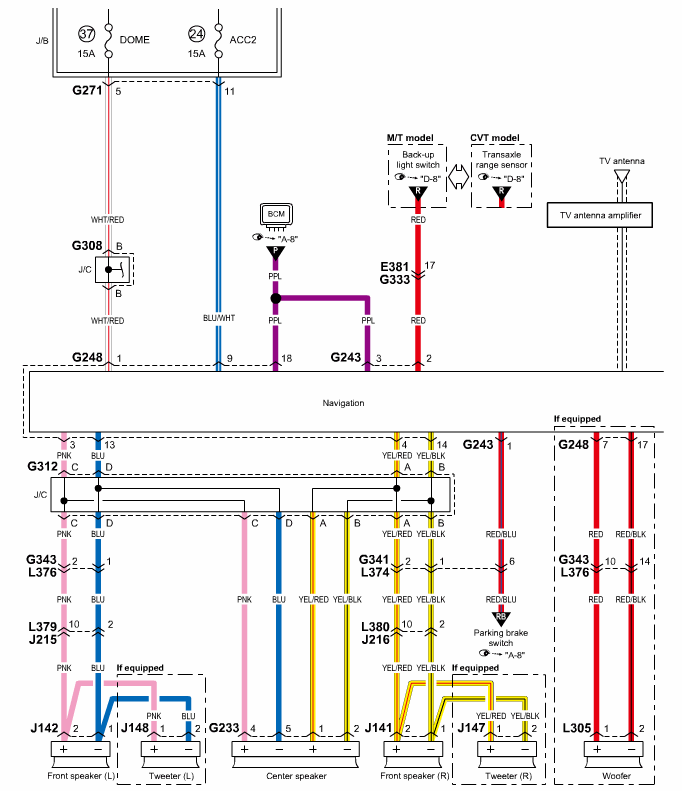

Fig 1: G-4 Navigation System Circuit Diagram (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

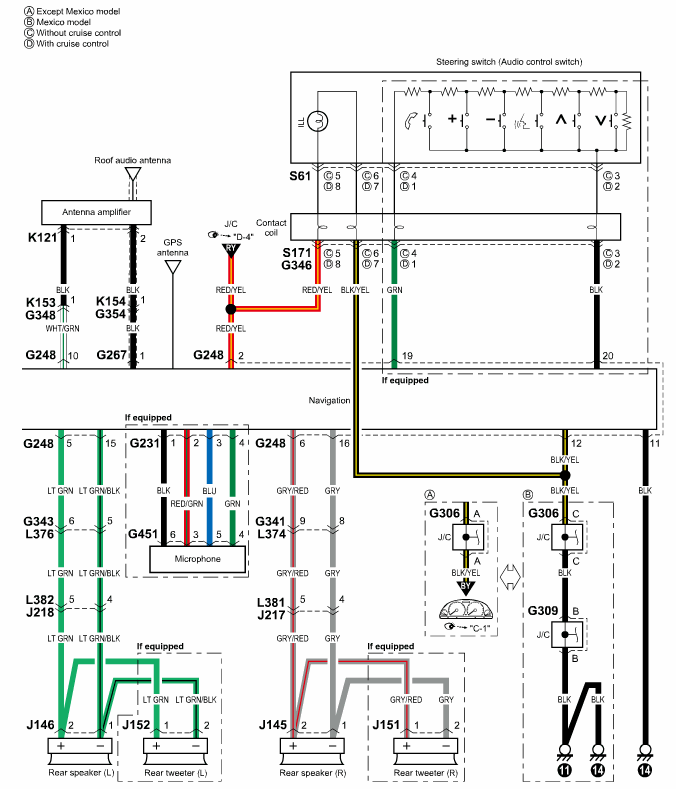

Fig 2: G-4 Navigation System Circuit Diagram (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
