Battery Removal and Installation: Removal

Disconnect negative (-) cable (3).
Disconnect positive (+) cable (2).
Remove retainer (4).
Remove battery (1).

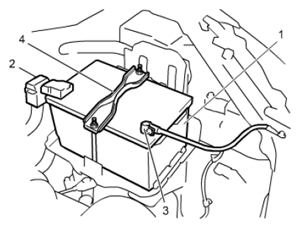

Fig 1: Identifying Battery Components
Courtesy of SUZUKI OF AMERICA CORP.
