Instrumentation/Driver Information/Horn
›
Schematic and Routing Diagram
›
Combination Meter Circuit Diagram
›
Notes
Combination Meter Circuit Diagram: Notes

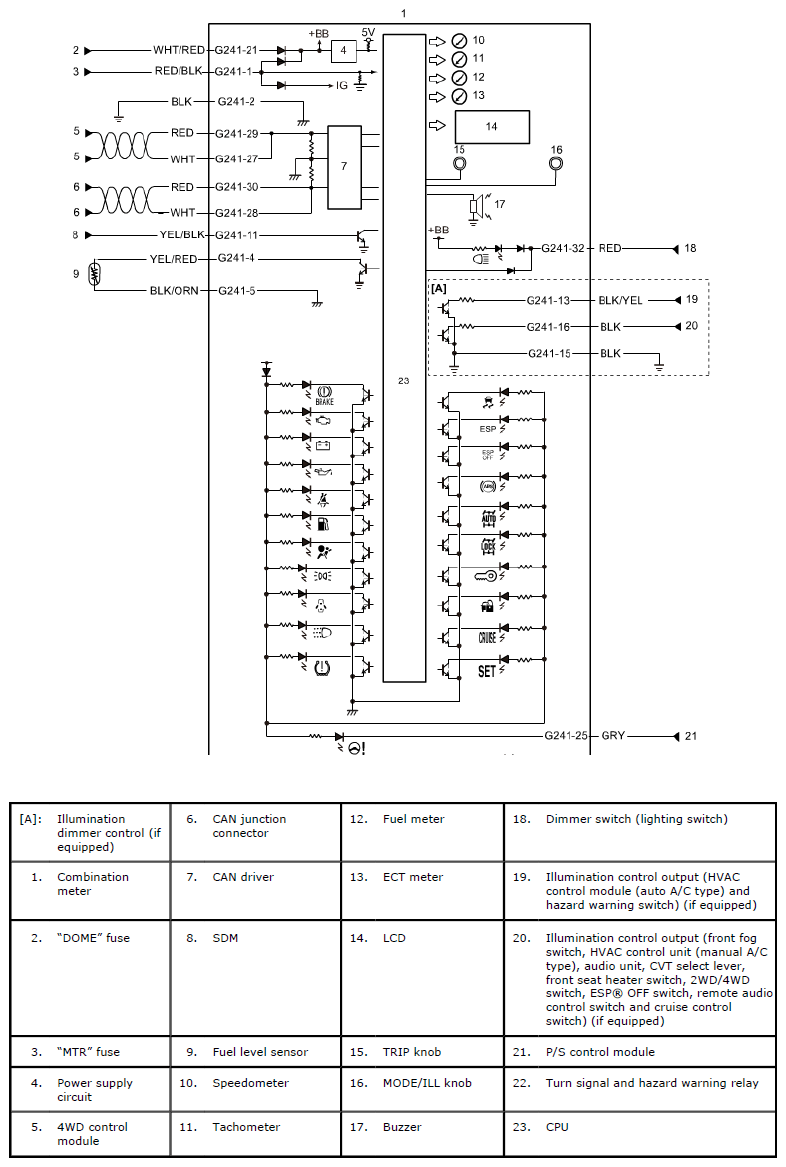

Fig 1: Combination Meter Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
