Oil Pressure Switch On-Vehicle Inspection

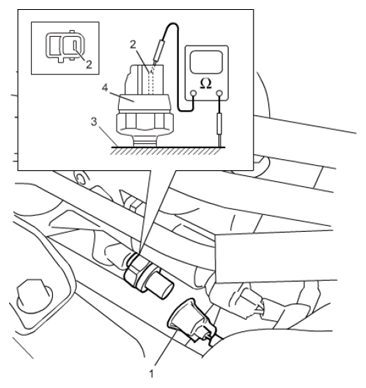

- Disconnect oil pressure switch connector (1).
- Check for continuity between oil pressure switch terminal (2) and timing chain cover (3) as shown in the figure. If check result is not as specified, replace oil pressure switch (4).
Oil pressure switch specification
During engine running: No continuity
At engine stop: Continuity
