Fuel Injector Control System Circuit Diagram
›
Wiring Diagram
Fuel Injector Control System Circuit Diagram: Wiring Diagram

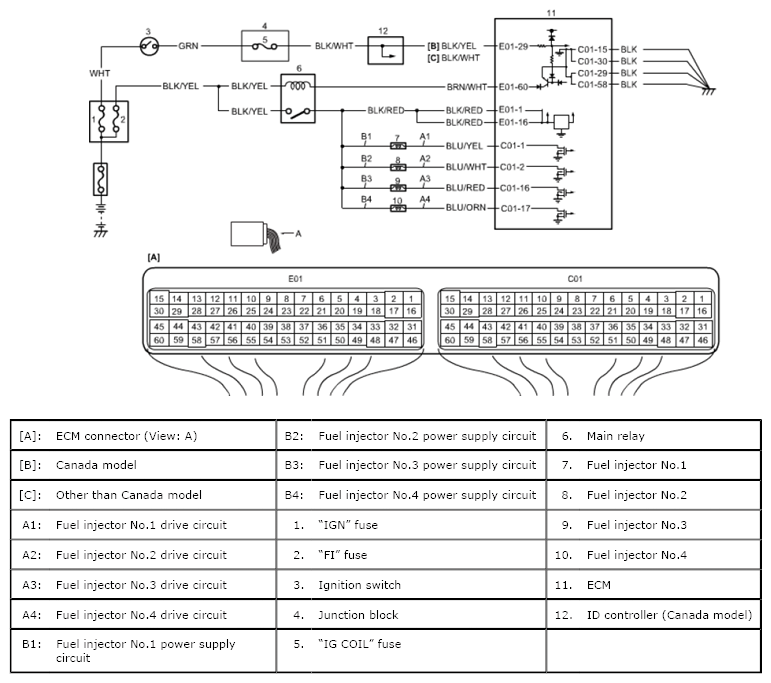

Fig 1: Fuel Injector Control System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
