Mode 6 - SUZUKI: SX4

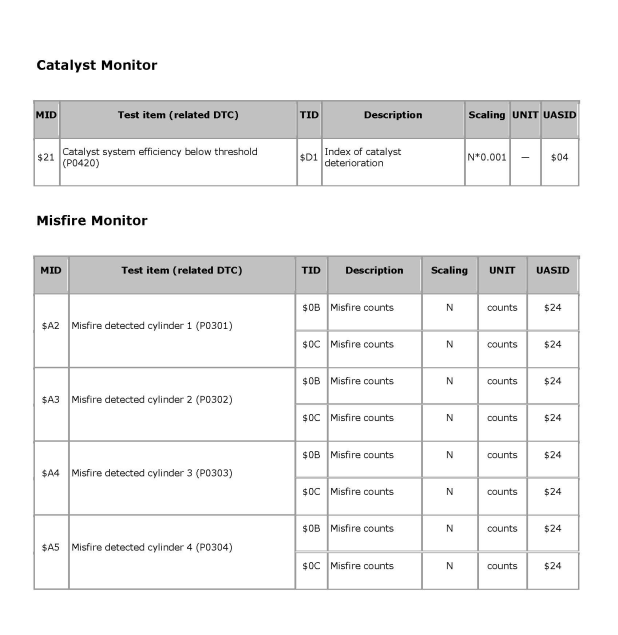

Fig 1: Mode $06 Data For SX4 (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

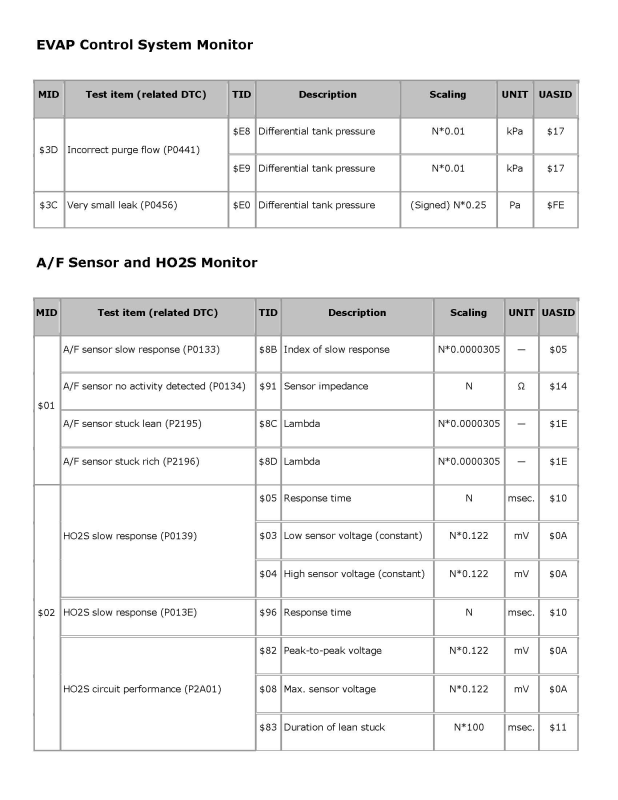

Fig 2: Mode $06 Data For SX4 (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

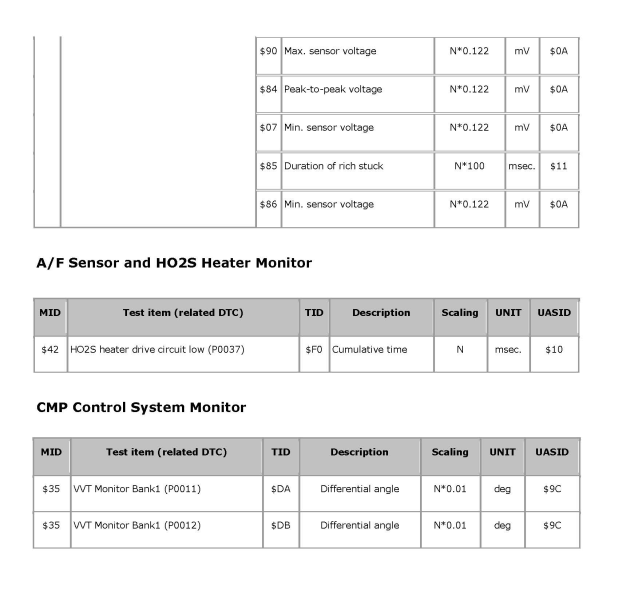

Fig 3: Mode $06 Data For SX4 (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
