Engine General Information & Diagnosis
›
Component Location
›
Electronic Control System Component Location
Electronic Control System Component Location

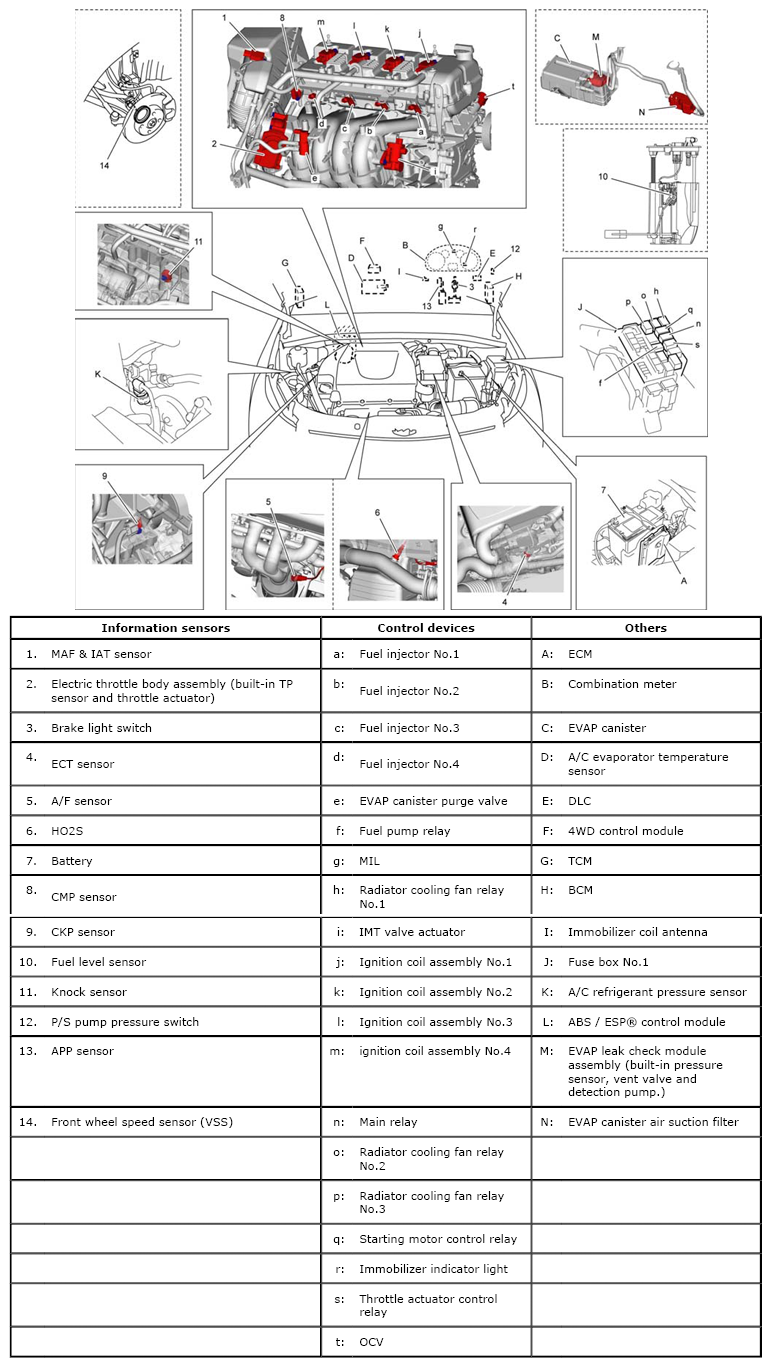

Fig 1: Identifying Electronic Control System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
