Reference waveform No. 3

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Motor output signal 1 (1), Motor output signal 2 (2), with engine idling

WAVEFORM 3 SIGNAL DESCRIPTION CHART

Measurement terminal	CH1: "E12-1" to vehicle body ground CH1: "E12-2" to vehicle body ground
Oscilloscope setting	CH1: 5 V/DIV, CH2: 5 V/DIV TIME: 20 μs/DIV
Measurement condition	Engine is idling and steering wheel is kept fully turned to left or right until it stops

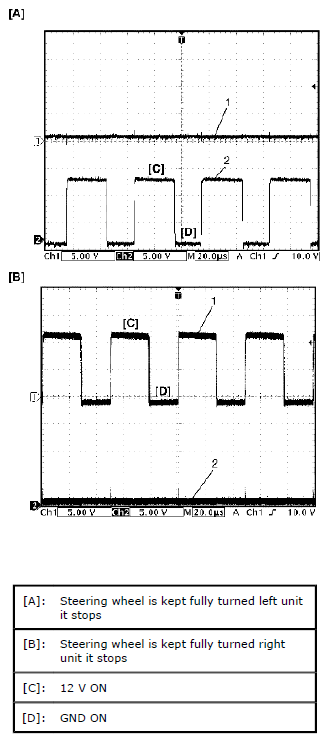

Fig 1: Reference Waveform No. 3

Courtesy of SUZUKI OF AMERICA CORP.
