Trunk Lid Lock Assembly Components (Sedan)

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

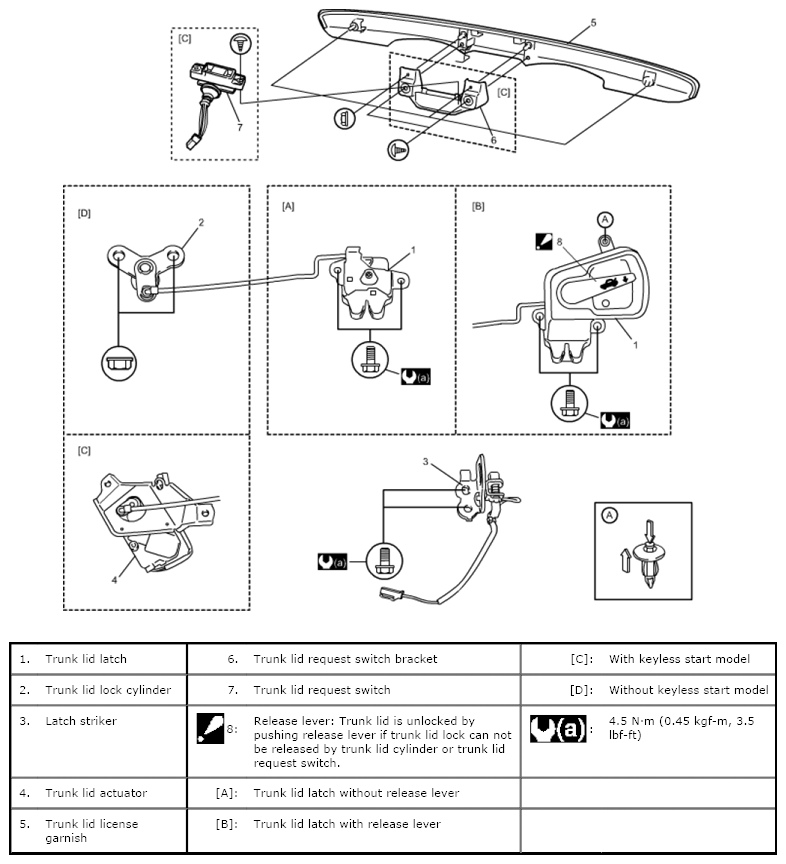

Fig 1: Identifying Trunk Lid Lock Assembly Components (Sedan)
G06868909Courtesy of SUZUKI OF AMERICA CORP.
