Hazard Warning Switch Inspection

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Reference: HAZARD WARNING SWITCH REMOVAL AND INSTALLATION

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

NOTE: Use diode range of circuit tester when checking between terminals "1" and "2", "7" and "8", "9" and "10", "9" and "3" and "9" and "4".

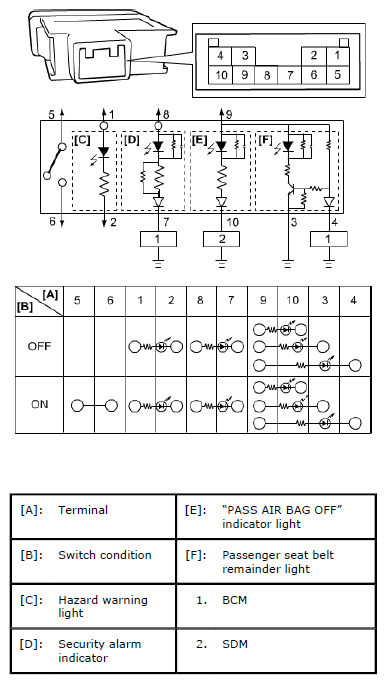

Fig 1: Inspecting Hazard Warning Switch
G06869127Courtesy of SUZUKI OF AMERICA CORP.
