Section 1 (Continuously Variable Transaxle (CVT))
›
Component Location
›
Electronic Shift Control System Component Location
Electronic Shift Control System Component Location
WARNING:
This page is about a different variant/trim than selected.

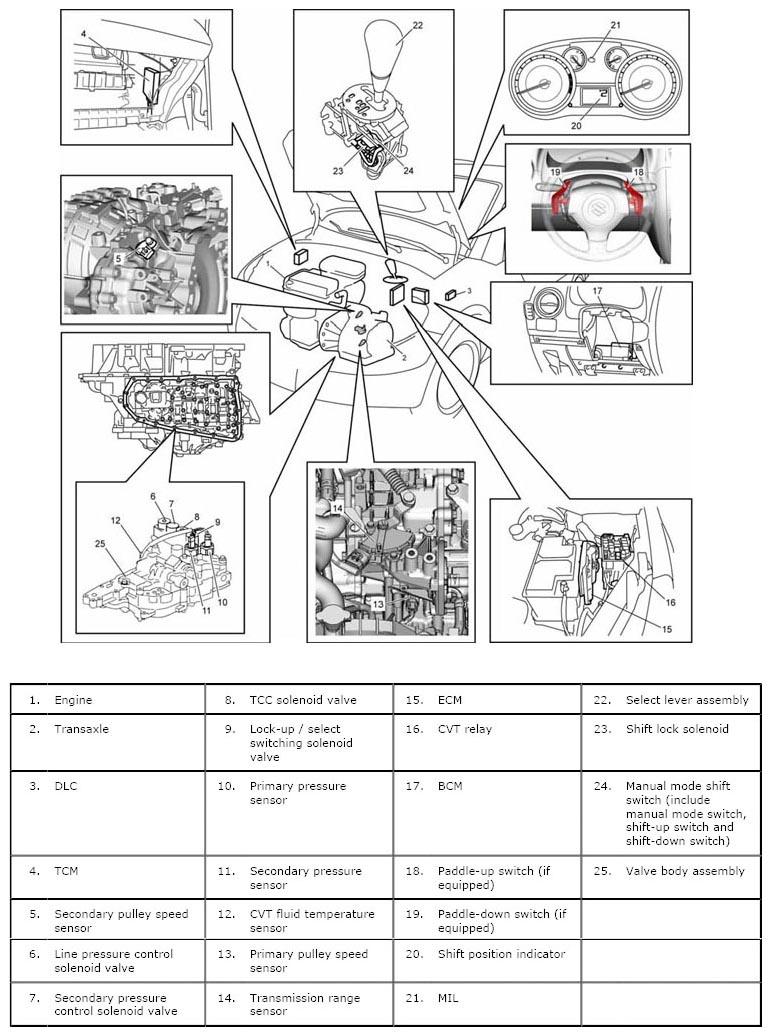

Fig 1: Identifying Electronic Shift Control System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
