Front Suspension & Wheel Alignment
›
Repair Instructions
›
Front Suspension Frame, Stabilizer Bar and/or Bush Components
Front Suspension Frame, Stabilizer Bar and/or Bush Components

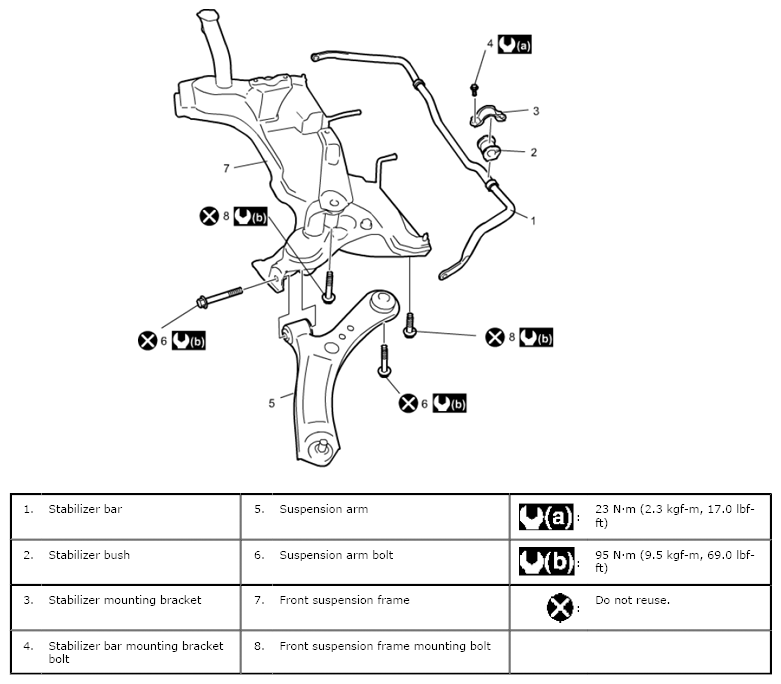

Fig 1: Identifying Front Suspension Frame, Stabilizer Bar And/Or Bush Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
