Gear Shift and Select Shaft Assembly Components
Gear Shift and Select Shaft Assembly Components

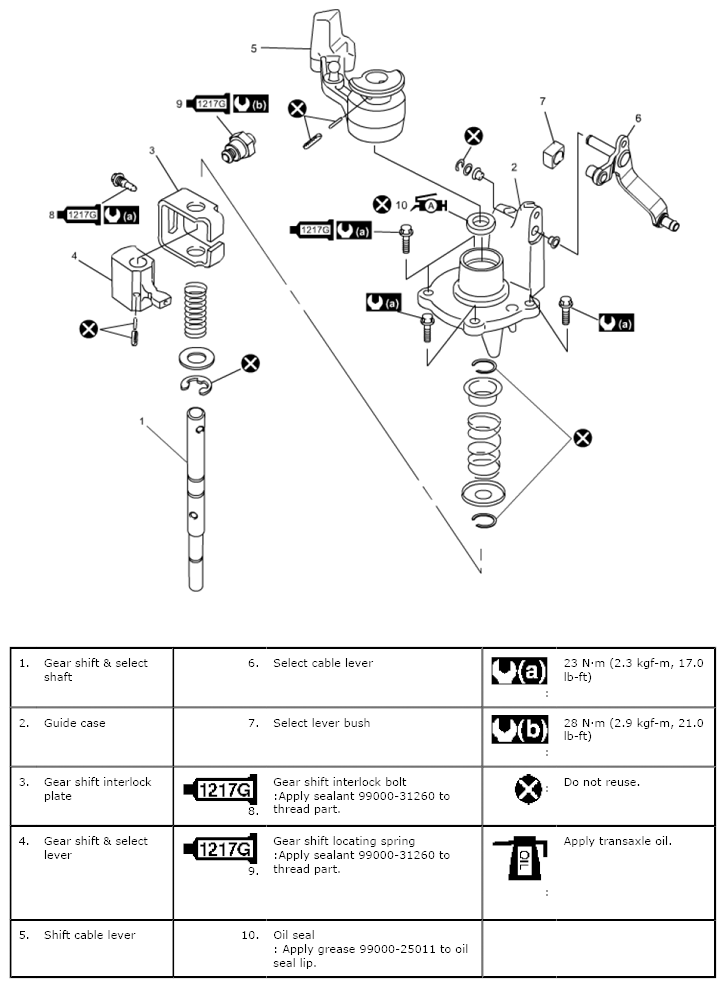

Fig 1: Identifying Gear Shift And Select Shaft Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
