Reverse Gears Components
Reverse Gears Components

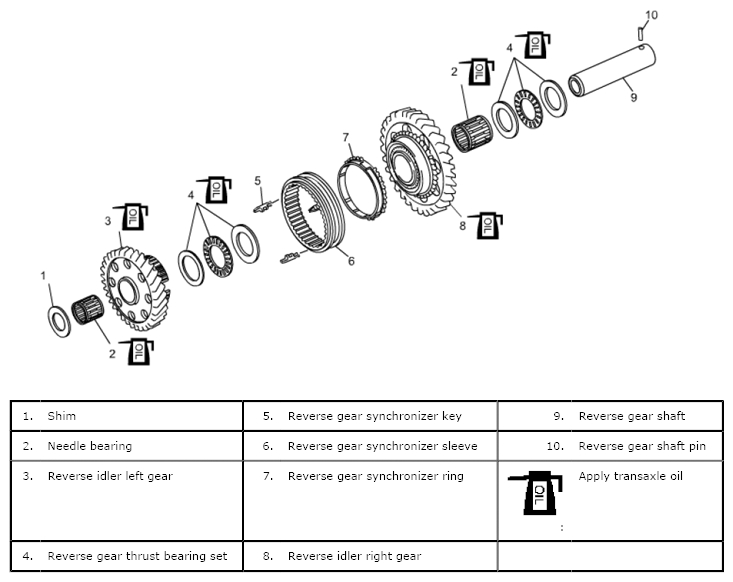

Fig 1: Identifying Reverse Gears Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
