Engine Control System Circuit Diagram: Notes

NOTE: For identification of each cylinder, refer to PRECAUTIONS FOR IDENTIFICATION OF CYLINDER .

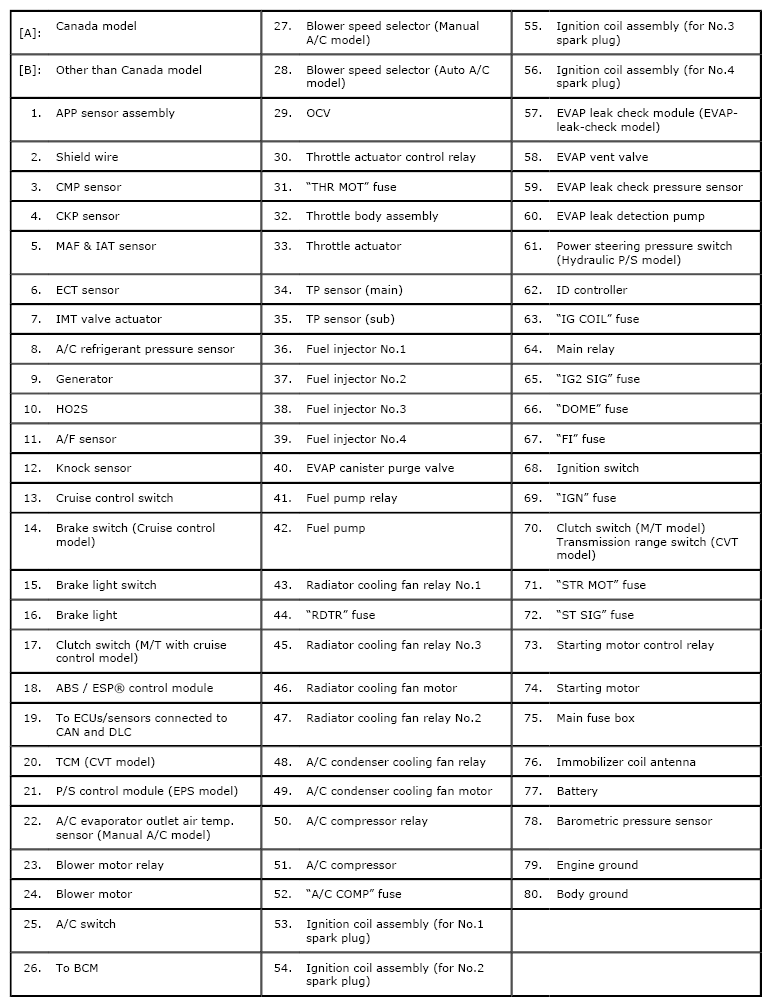

Fig 1: Engine Control System Circuit Diagram (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

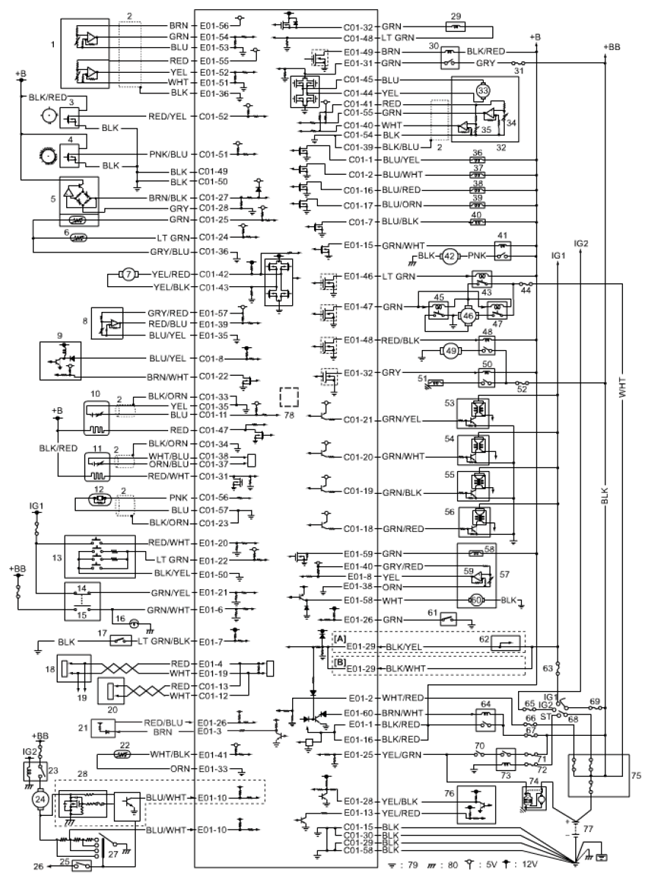

Fig 2: Engine Control System Circuit Diagram (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
