Reassembling Note for Wiring Harness
›
Around Strut
›
Right Side
Right Side

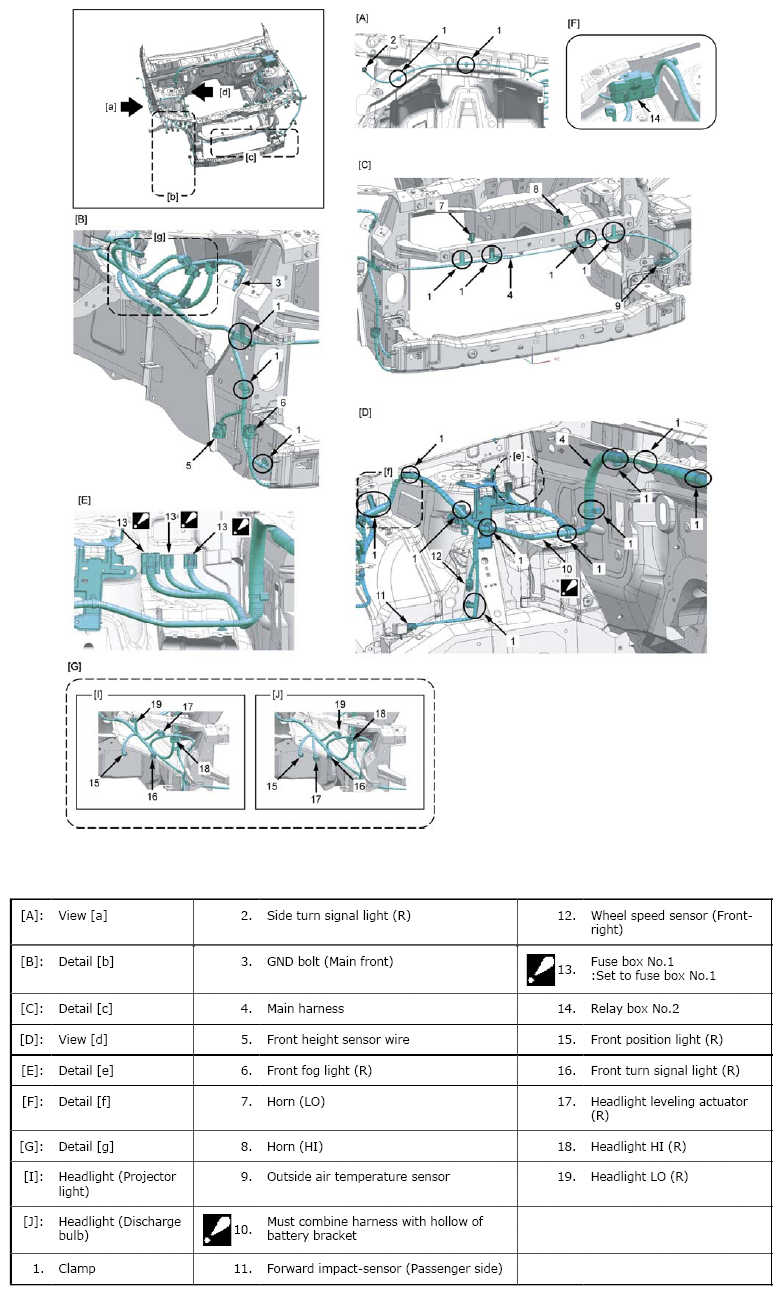

Fig 1: Identifying Right Side Wiring Harness Clips (Around Strut)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
