Exhaust System Components

CAUTION: Touching a hot exhaust system component will cause a burn.
Do not perform any service work on the exhaust system until the exhaust system is cool.

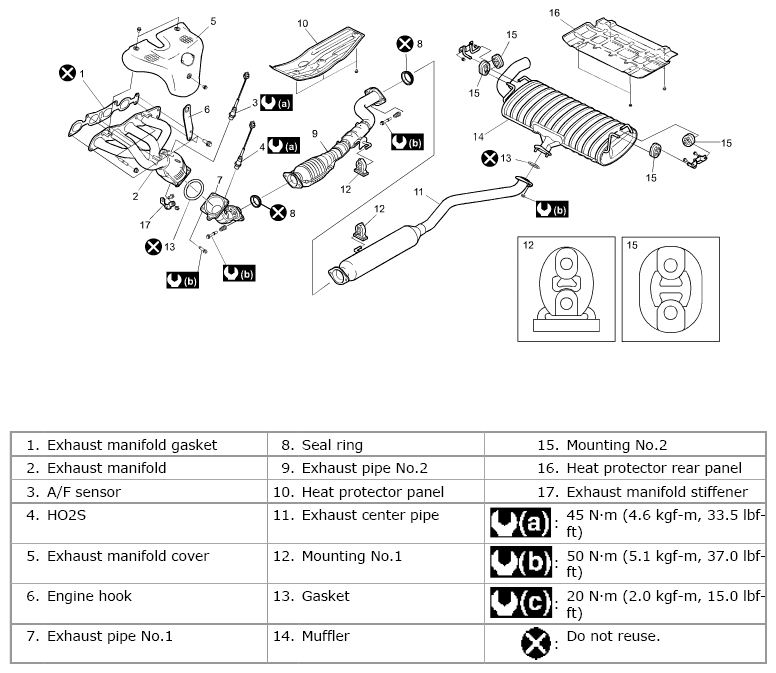

Fig 1: Exploded View Of Exhaust System

Courtesy of SUZUKI OF AMERICA CORP.
