Sub Fuel Level Sensor Removal and Installation: Removal

  1. Remove fuel tank from vehicle. Refer to Fuel Tank Removal and Installation .
  2. Disconnect sub fuel level sensor connector (1).

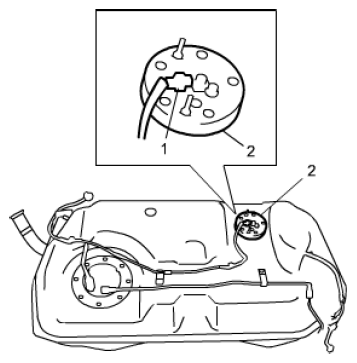

    Fig 1: Identifying Sub Fuel Level Sensor And Connector
    G08893906Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove sub fuel level sensor (2) from fuel tank.
