EVAP Leak Check Module Removal and Installation: Removal

  1. Remove EVAP canister and EVAP leak check module as an assembly. Refer to EVAP Canister Removal and Installation .
  2. Remove EVAP leak check module (1) from EVAP canister (2).

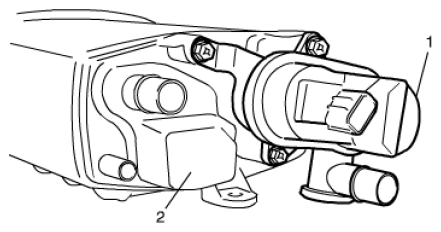

    Fig 1: Identifying EVAP Leak Check Module And EVAP Canister
    G08895313Courtesy of SUZUKI OF AMERICA CORP.
