Extension Case Assembly Components
Extension Case Assembly Components

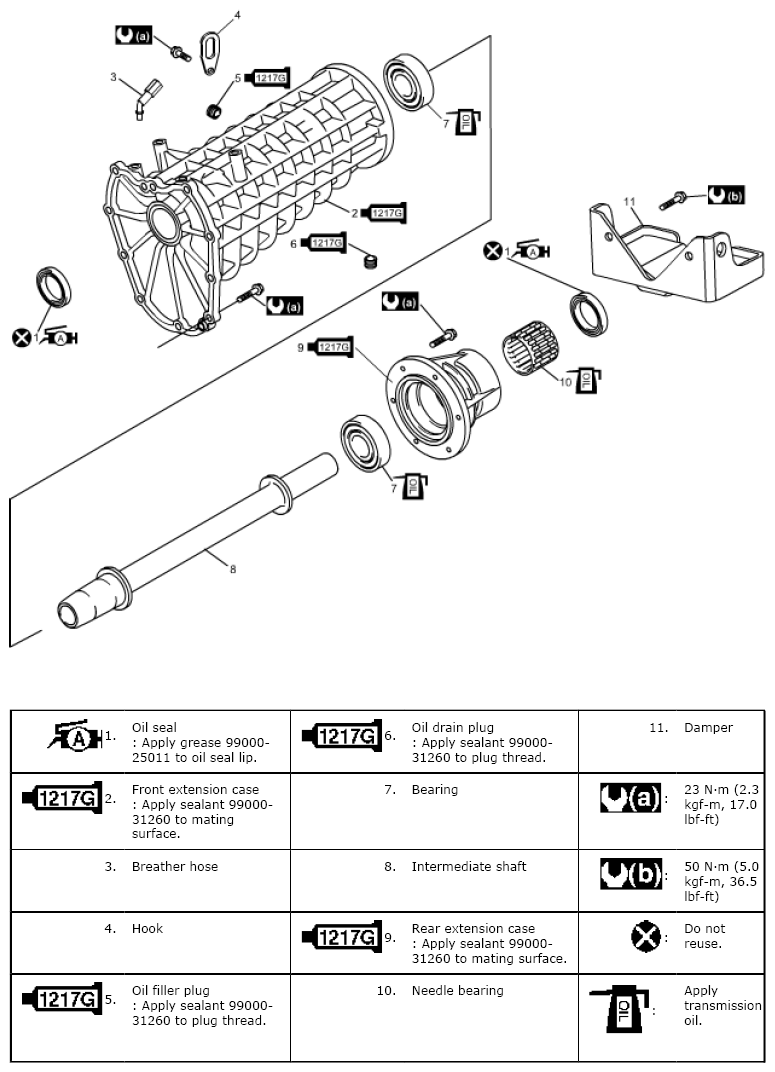

Fig 1: Exploded View Of Extension Case Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
